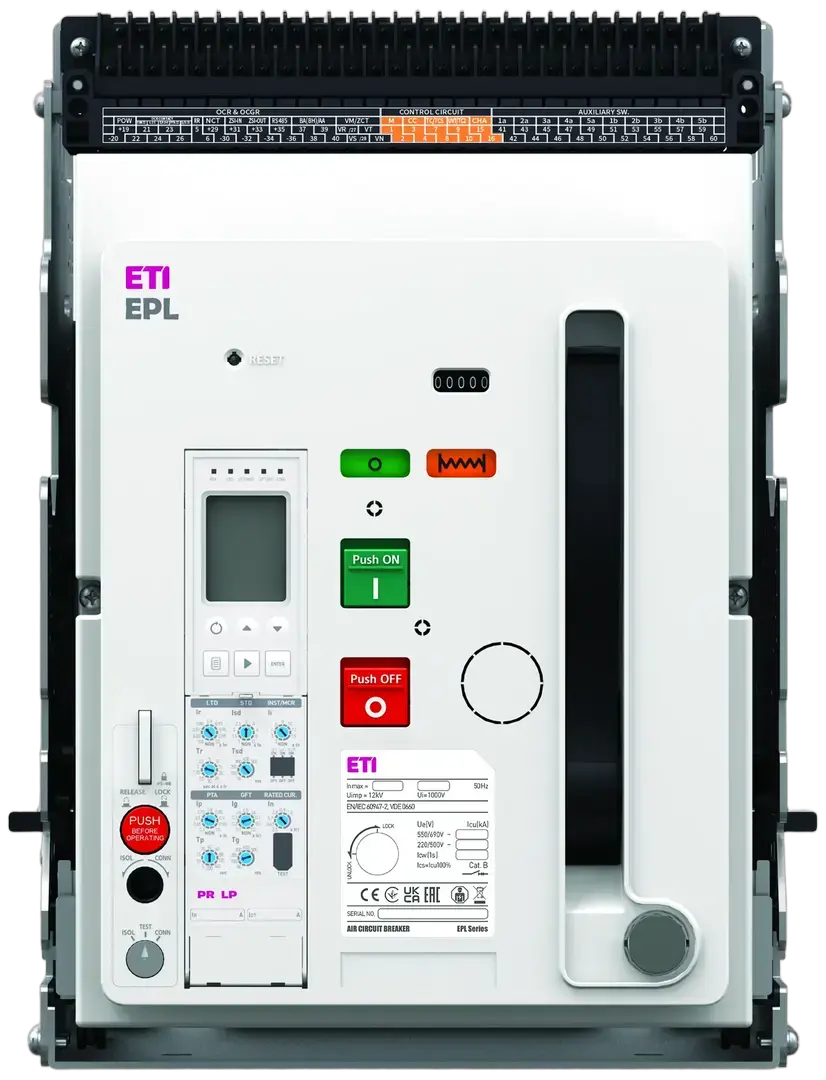

EPL-10 3H AD/M2C2S2/PR-LP Vazdušni prekidač

ETI kod:: 004695702
Primena:: 60947-2
Nazivni impulsni napon Uimp (kV):: 8 kV
Tip konekcije:: Zadnji priključak
Nazivni radni napon (V AC):: 690 V
Broj polova:: 3
Prilagodljiv ili fiksirani:: Podesivi
Magnetno podešavanje:: 1-15 xIn
Standardi:: 60947-2
Temperaturno podešavanje:: 0,4-1 xIn
Nazivna struja:: 1000 A
Nazivna prekidna moć pri 415V Icu/Ics (kA):: 65 kA
Grupa kataloga 1:: ETIPOWER

Proizvod

Težina: 64,93 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400105486
Basic packaging weight: 65,3 kg
Basic Packaging Dimensions Height: 328 mm
Basic Packaging Dimensions Width: 460 mm
Basic Packaging Dimensions Depth: 368,8 mm
Basic packaging volume: 55,645 dm³

Transportno pakovanje

Intermediate packaging quantity: 1 pcs
EAN code for a intermediate packaging: 3838400105493
Intermediate packaging weight: 69,925 kg
Intermediate Packaging Dimensions Height: 600 mm
Intermediate Packaging Dimensions Width: 700 mm
Intermediate Packaging Dimensions Depth: 600 mm
Transport packaging quantity: 6 pcs
EAN code for a transport packaging: 3838400105509
Transport packaging weight: 428 kg
Transport Packaging Dimensions Height: 1.750 mm
Transport Packaging Dimensions Width: 1.200 mm
Transport Packaging Dimensions Depth: 840 mm
Transport packaging volume: 1.764 dm³
Pallet quantity: 6 pcs
Customs tariff: 85362090

Motor drive optional: Da
Complete device with protection unit: Da
Rated permanent current Iu: 1.000 A
Motor drive integrated: Da
Degree of protection (IP): IP20
Type of control element: Push button
Position of connection for main current circuit: Back side
Integrated earth fault protection: Da
Type of electrical connection of main circuit: Connection at separate chassis part
Number of poles: 3
Device construction: Built-in device slide-in technique (withdrawable)
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: 65 kA
With switched-off indicator: Da
Rated voltage(Min): 690 V
Rated voltage(Max): 690 V

ETIM klasifikacija – verzija 9.0
