Monitoring and control relays are crucial elements in modern electrical systems, responsible for ensuring safety, reliability, and efficient operation. These relays go beyond simple on/off switches, actively monitoring various electrical parameters, such as voltage, current, frequency, and level. They trigger pre-defined actions based on these monitored conditions, acting as intelligent intermediaries to protect equipment, prevent faults, and automate processes.

002471432

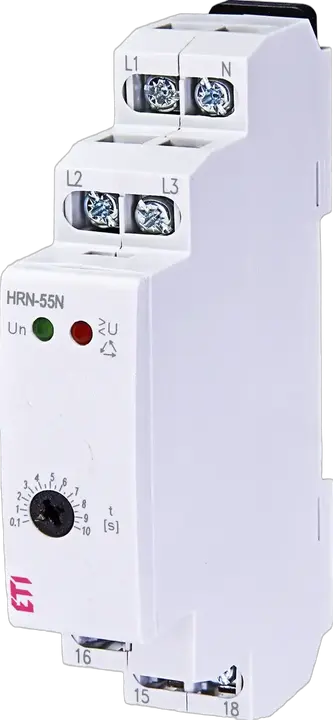

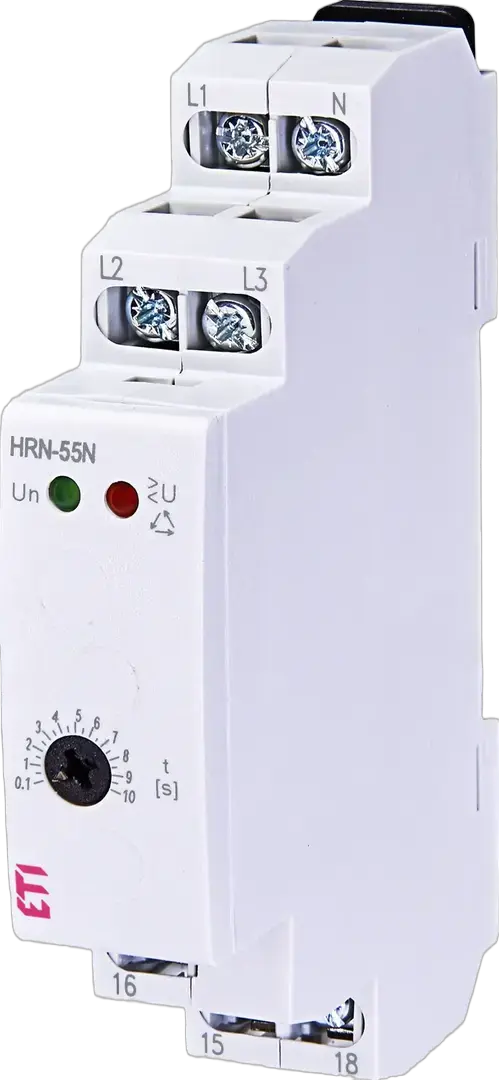

Slika HRN-55N

HRN-55N Upravljački relej

ETI kod:: 002471432
Kategorija:: Relej za nadzor napona
Grupa kataloga 1:: Releji za kontrolu i merenje napona
Kataloška podgrupa:: Relej za nadzor ispada faze
Opis tipa:: Relej za nadzor napona
Funkcija:: Uređaji za nadzor i upravljanje
Napon napajanja (V):: 400 V
Tip upravljanja:: Redosled faza, Ispad faze i nule
Broj kontakta:: 1
Tip napona:: AC
Maksimalna nosivost AC1 (VA):: 2.500 VA
Nazivna struja:: 8 A
Tip kontakta:: 1xCO
Broj CO kontakata:: 1

Proizvod

Težina: 0,066 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895473657
Basic packaging weight: 0,066 kg
Basic packaging volume: 0,13 dm³

Transportno pakovanje

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895473664
Transport packaging weight: 0,66 kg
Transport packaging volume: 1,3 dm³
Pallet quantity: 12.120 pcs
Customs tariff: 85364900

Single-phase under voltage possible: Da
Width: 18 mm
Three-phase under voltage possible: Da
Single-phase hysteresis possible: Da
Max. permitted delay-on energization time: 10 s
Min. adjustable delay-on energization time: 0,1 s
Voltage type (operating voltage): AC
Max. permitted off-delay time: 10 s
Voltage type (supply voltage): AC
Min. adjustable off-delay time: 0,1 s
Three-phase over voltage possible: Da
Type of voltage measuring range: AC
Rated switch current: 8 A
Single-phase over voltage possible: Da
Depth: 64 mm
Three-phase hysteresis possible: Da
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Operating voltage AC 50 Hz(Min): 230 V
Operating voltage AC 60 Hz(Min): 230 V
Supply voltage AC 60 Hz(Min): 230 V
Voltage measuring range 2(Min): 173 V
Voltage measuring range 1(Min): 242 V
Supply voltage AC 50 Hz(Min): 230 V
Voltage measuring range 1(Max): 288 V
Supply voltage AC 50 Hz(Max): 400 V
Operating voltage AC 60 Hz(Max): 400 V
Operating voltage AC 50 Hz(Max): 400 V
Voltage measuring range 2(Max): 219 V
Supply voltage AC 60 Hz(Max): 400 V

ETIM klasifikacija – verzija 9.0

002471432 Upravljački relej HRN-55N EVE/ETIREL Control equipment Relays Relays Phase sequence monitoring relay Phase sequence monitoring relay Međunarodni Automatizacija, signalni i kontrolni uređaji Relei za nadzor Tip kontakta: 1xCO Broj NC kontakata: 0 Tip napona: AC Broj kontakta: 1 Broj CO kontakata: 1 Tip upravljanja: Ispad faze i nule, Redosled faza, Umax, Umin Funkcija: Uređaji za nadzor i upravljanje Maksimalna nosivost AC1 (VA): 2500 VA Broj NO kontakta: 0 Napon napajanja (V): 400 V-400 V Nazivna struja: 8 A/8 A DC napon napajanja Uc (V): 0 V-0 V Upravljački relej Funkcija: Uređaji za nadzor i upravljanje Napon napajanja (V): 400 V-400 V Tip upravljanja: Ispad faze i nule, Redosled faza, Umax, Umin Broj kontakta: 1 Tip napona: AC Nazivna struja: 8 A/8 A Maksimalna nosivost AC1 (VA): 2500 VA Tip kontakta: 1xCO Broj NC kontakata: 0 Broj CO kontakata: 1 Broj NO kontakta: 0 DC napon napajanja Uc (V): 0 V-0 V
