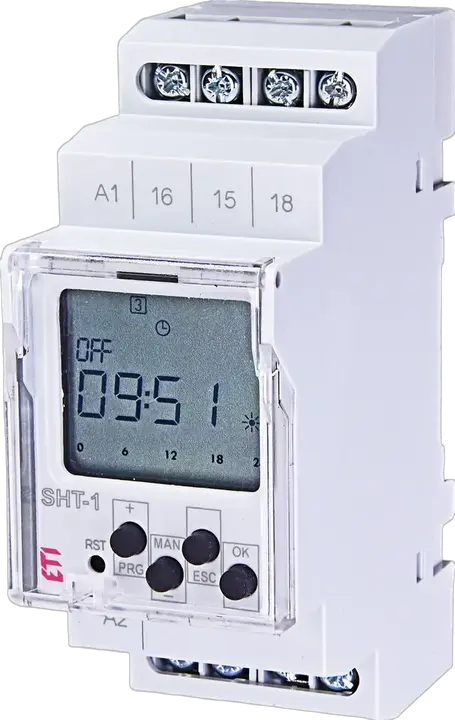

SHT-1 UNI Vremenski relej - digitalni

ETI kod:: 002470051
Kategorija:: Digitalni vremenski relej SHT-1, SHT-1/2, SHT-3 i SHT-3/2
Grupa kataloga 1:: Vremenski relej (digitalni)
Kataloška podgrupa:: Digitalna vremenska sklopka
Vremenski opseg:: daily, weekly, calendar
Opis tipa:: Digitalni vremenski automat SHT-1, SHT-1/2, SHT-3 i SHT-3/2
Tip kontakta:: 1xCO
Tip napona:: AC/DC
Broj kontakta:: 1
Broj CO kontakata:: 1
Funkcija:: Vremenski relej
Maksimalna nosivost AC1 (VA):: 4.000 VA
Napon napajanja (V):: 12-240 V
Nazivna struja:: 16 A

Proizvod

Težina: 0,13 kg
Net width: 112,6 mm
Net height: 119,9 mm
Net depth: 63,17 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895906421
Basic packaging weight: 0,13 kg
Basic Packaging Dimensions Height: 78 mm
Basic Packaging Dimensions Width: 97 mm
Basic Packaging Dimensions Depth: 61 mm
Basic packaging volume: 0,462 dm³

Transportno pakovanje

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 8595188121071
Transport packaging weight: 0,13 kg
Transport Packaging Dimensions Height: 78 mm
Transport Packaging Dimensions Width: 97 mm
Transport Packaging Dimensions Depth: 61 mm
Transport packaging volume: 0,462 dm³
Pallet quantity: 2.166 pcs
Customs tariff: 85364900

Number of contacts: 1
Impulse program: Da
Quartz controlled: Da
Width: 36 mm
Suitable for manual operation: Da
Weekly program: Da
Number of channels: 1
Contact type: Change-over contact (NO/NC)
Mounting method: DIN rail
Automatic switching summer-/winter time: Da
Accuracy per day: 1 s
Holiday program: Da
Voltage type (supply voltage): AC/DC
Random program: Da
Autonomy in hours: 26.280
Shortest switching time channel 2: 1 min
Autonomy in years: 3
24 h program: Da
Nominal switching current at 250 V AC: 16 A
Depth: 90 mm
Text guidance in display: Da
Cycle program: Da
Shortest switching time channel 1: 1 min
Potential free switch contact: Da
Height: 64 mm
Width in number of modular spacings: 2
60 min program: Da
Frequency supply voltage(Min): 50 Hz
Supply voltage(Min): 12 V
Frequency supply voltage(Max): 60 Hz
Supply voltage(Max): 240 V

ETIM klasifikacija – verzija 9.0
