001901271

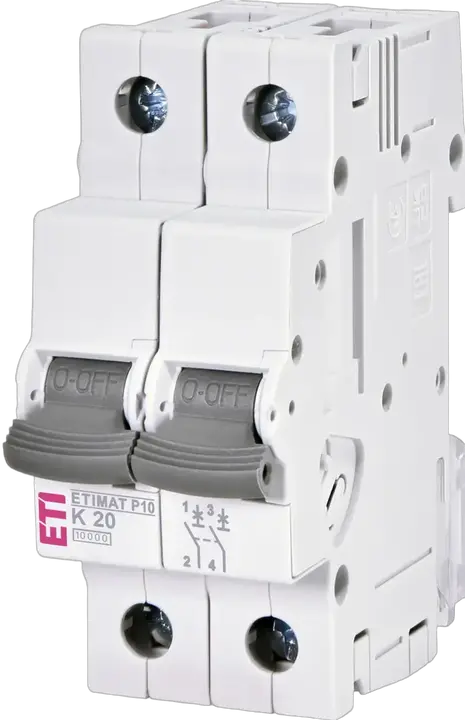

ETIMAT P10 2p K20 Automatski prekidač

ETI kod:: 001901271
Primena:: IEC/EN 60947-2
Nazivna struja:: 20 A
Karakteristika okidanja:: K
Broj polova:: 2
Nazivna prekidna moć:: 10 kA
Tip napona:: AC
Nazivni impulsni napon Uimp (kV):: 6 kV
Nazivni AC napon:: 415 V
Nazivna frekvencija (Hz):: 50/60 Hz
Nazivni poprečni presek:: 1-25 mm²
Standardi:: IEC/EN 60947-2
Funkcija:: MCB

Pribor

Proizvod

EAN code for a single product: 3838895957492
Težina: 245 g
Net width: 35,6 mm
Net height: 89 mm
Net depth: 74,74 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 6 pcs
EAN code for a basic packaging: 3838895957508
Basic packaging weight: 1,526 kg
Basic Packaging Dimensions Height: 79 mm
Basic Packaging Dimensions Width: 91 mm
Basic Packaging Dimensions Depth: 220 mm
Basic packaging volume: 1,582 dm³

Transportno pakovanje

Transport packaging quantity: 54 pcs
EAN code for a transport packaging: 3838895957515
Transport packaging weight: 14,087 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 2.808 pcs
Customs tariff: 85362010

Additional equipment possible: Da
Rated insulation voltage Ui: 500 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 10 kA
Built-in depth: 70 mm
Voltage type: AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Rated impulse withstand voltage Uimp: 6 kV
Degree of protection (IP): IP20
Release characteristic: K
Over voltage category: 3
Number of poles (total): 2
Pollution degree: 2
Number of protected poles: 2
Rated voltage: 415 V
Current limiting class: 3
Rated current: 20 A
Flush-mounted installation: Da
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 10 kA
Width in number of modular spacings: 2
Frequency(Min): 50 Hz
Ambient temperature during operating(Min): -40 °C
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Frequency(Max): 60
Ambient temperature during operating(Max): 70 °C

ETIM klasifikacija – verzija 9.0
