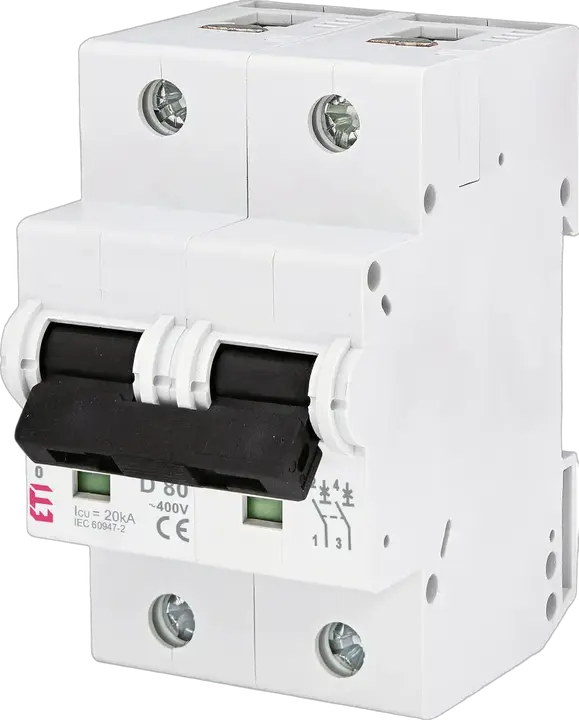

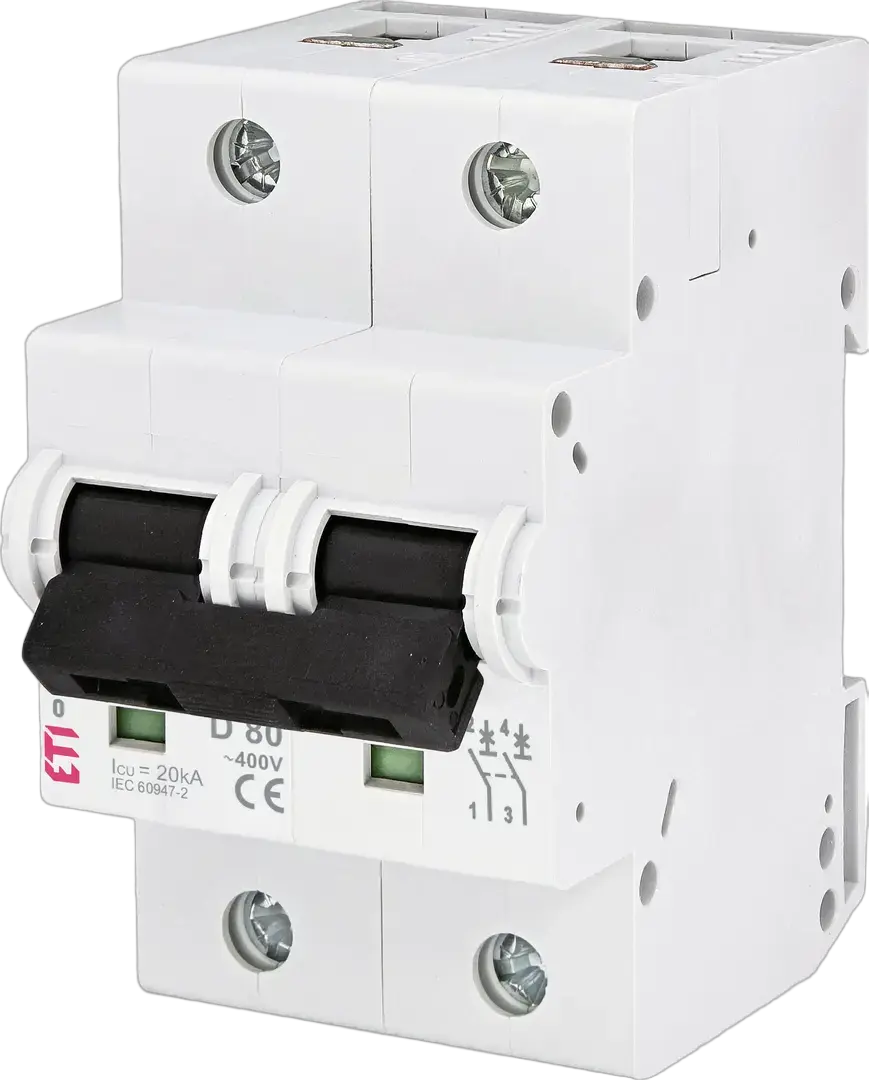

ETIMAT 10 2p D80 Automatski prekidač

ETI kod:: 002153731
Dubina (mm):: 75 mm
Grupa kataloga 1:: ETIMAT 10 80-125A
Primena:: IEC/EN 60898-1, IEC 60947-2
IP zaštita:: IP20
Nazivna struja:: 80 A
Karakteristika okidanja:: D
Broj polova:: 2
Nazivna prekidna moć:: 20 kA
Tip napona:: AC
Nazivni impulsni napon Uimp (kV):: 4 kV
Nazivni AC napon:: 415 V
Nazivna frekvencija (Hz):: 50/60 Hz
Nazivni poprečni presek:: 2.5-50 mm²
Standardi:: IEC/EN 60898-1, IEC 60947-2
Funkcija:: MCB

Pribor

Proizvod

Težina: 0,46 kg
Net width: 54 mm
Net height: 90,8 mm
Net depth: 76,59 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895328254
Basic packaging weight: 0,247 kg
Basic Packaging Dimensions Height: 0,075 m
Basic Packaging Dimensions Width: 0,092 m
Basic Packaging Dimensions Depth: 0,057 m
Basic packaging volume: 0 m³

Transportno pakovanje

Transport packaging quantity: 36 pcs
EAN code for a transport packaging: 3838895328261
Transport packaging weight: 9,242 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 2.340 pcs
Customs tariff: 85362090

Additional equipment possible: Da
Rated insulation voltage Ui: 440 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 20 kA
Built-in depth: 75 mm
Voltage type: AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 20 kA
Rated impulse withstand voltage Uimp: 4 kV
Degree of protection (IP): IP20
Release characteristic: D
Over voltage category: 3
Number of poles (total): 2
Pollution degree: 3
Number of protected poles: 2
Rated voltage: 415 V
Current limiting class: 3
Rated current: 80 A
Width in number of modular spacings: 3
Frequency(Min): 50 Hz
Ambient temperature during operating(Min): -25 °C
Connectable conductor cross section solid-core(Min): 2,5 mm²
Connectable conductor cross section multi-wired(Min): 2,5 mm²
Connectable conductor cross section solid-core(Max): 50 mm²
Connectable conductor cross section multi-wired(Max): 50 mm²
Frequency(Max): 60
Ambient temperature during operating(Max): 55 °C

ETIM klasifikacija – verzija 9.0
