002175874 Zastareo

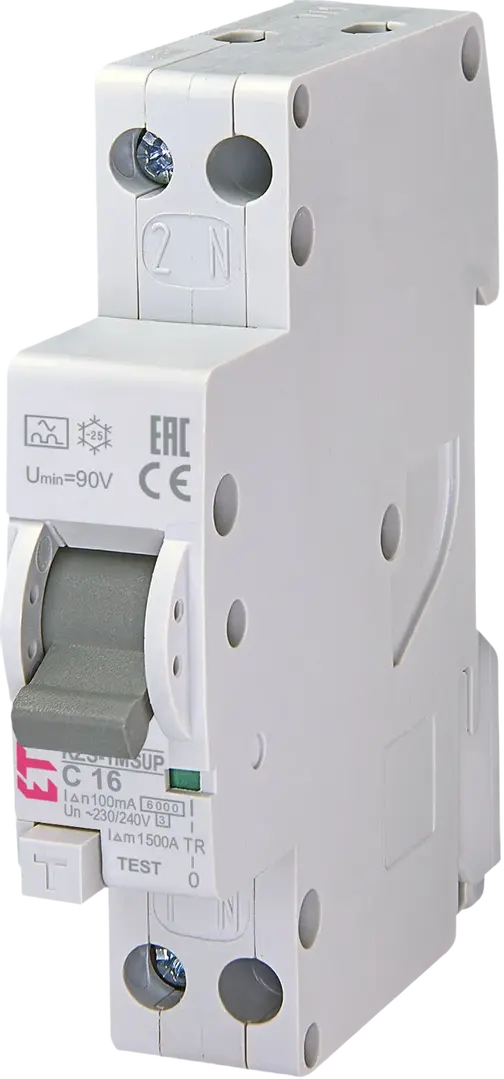

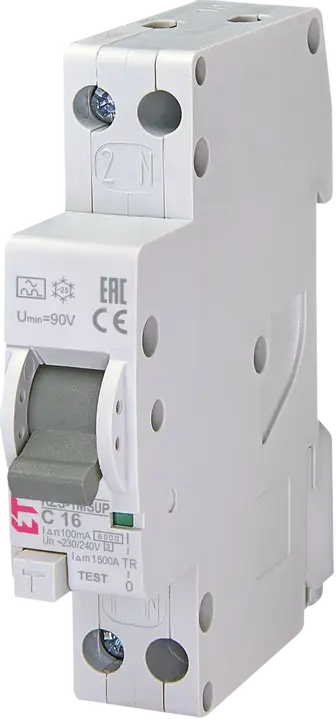

*KZS-1M-SUP 1p+N A C16/0.1 KZS sklopka

ETI kod:: 002175874
Funkcija:: Zaštitne sklopke na diferencijalnu struju sa nadstrujnom zaštitom
Nazivni AC napon:: 230 V
Grupa kataloga 1:: KZS-1M Residual current circuit breakers with ove
Signalizacija tipa greške:: Ne
Primena:: IEC 61009
Tip konekcije:: Napajanje odozgo
Nazivna uslovna struja kratkog spoja Inc (kA):: 6 kA
Nazivna preostala radna struja IDn (mA):: 0,1 A
Nazivna struja:: 16 A
Tip rezidualne struje:: A
Nazivna diferencijalna struja:: 0,1 A
Karakteristika okidanja:: C
Broj polova:: 1+N
Nazivna prekidna moć:: 6 kA
Nazivni poprečni presek:: 1-10 mm²
Standardi:: IEC 61009

Pribor

Proizvod

EAN code for a single product: 3838895818984
Težina: 0,115 kg
Net width: 17,9 mm
Net height: 88,2 mm
Net depth: 73,97 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 12 pcs
EAN code for a basic packaging: 3838895818991
Basic packaging weight: 1,388 kg
Basic Packaging Dimensions Height: 0,085 m
Basic Packaging Dimensions Width: 0,123 m
Basic Packaging Dimensions Depth: 0,218 m
Basic packaging volume: 0,002 m³

Transportno pakovanje

Transport packaging quantity: 72 pcs
EAN code for a transport packaging: 3838895820116
Transport packaging weight: 8,678 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 3.744 pcs
Customs tariff: 85362010

Built-in depth: 69 mm
Leakage current type: A
Degree of protection (IP): IP20
Release characteristic: C
Rated fault current: 0,1 A
Number of poles (total): 2
Frequency: 50 Hz
Rated short-circuit breaking capacity according to EN 61009: 6 kA
Concurrently switching neutral conductor: Da
Number of protected poles: 1
Rated voltage: 230 V
Current limiting class: 3
Rated current: 16 A
Width in number of modular spacings: 1
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
