004110342

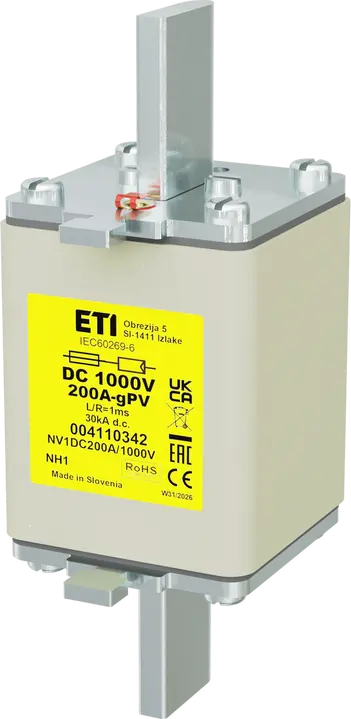

NH1 gPV 200A/1000V DC Topljivi osigurač

ETI kod:: 004110342
Tip osigurača:: NH
Veličina:: NH1
Nazivna struja:: 200 A
Karakteristika:: gPV
Indikator:: Indikator statusa gornjeg osigurača
Nazivni DC napon:: 1000 V
DC Prekidna moć:: 30 kA
L/R (ms):: 1 ms
Snaga disipacije (0,7xIn) (W):: 11 W
Pd (W):: 27 W
Džulov integral pre el.luka (A2s):: 4.400
Radni Džulov integral (A2s):: 29.000
Standardi:: IEC 60269-6
Primena:: Osigurač za DC primenu

Pribor

Proizvod

EAN code for a single product: 3838895606031
Težina: 640 g
Net width: 51 mm
Net height: 135 mm
Net depth: 63 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895606048
Basic packaging weight: 1,996 kg
Basic Packaging Dimensions Height: 0,079 m
Basic Packaging Dimensions Width: 0,17 m
Basic Packaging Dimensions Depth: 0,17 m
Basic packaging volume: 0,002 m³

Transportno pakovanje

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895606055
Transport packaging weight: 16,514 kg
Transport Packaging Dimensions Height: 0,23 m
Transport Packaging Dimensions Width: 0,38 m
Transport Packaging Dimensions Depth: 0,38 m
Transport packaging volume: 0,033 m³
Pallet quantity: 576 pcs
Customs tariff: 85361090

Voltage type: DC
Fuse construction type according to IEC 60269: NH1
Power loss at rated current: 27 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 200 A
Rated voltage DC: 1.000
Utilization category: gPV (photovoltaic protection)
