004187206

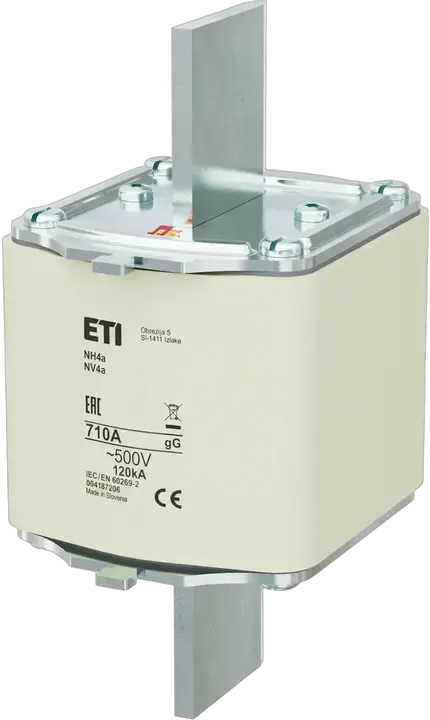

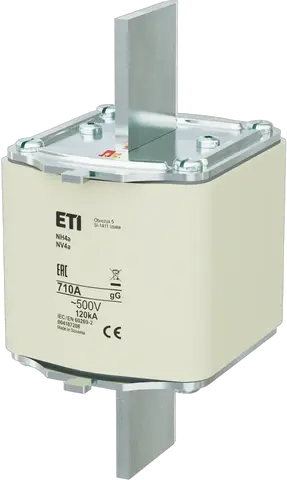

NH4a gG 710A/500V Topljivi osigurač

ETI kod:: 004187206
Tip osigurača:: NH
Veličina:: NH4a
Nazivna struja:: 710 A
Karakteristika:: gG
Indikator:: Indikator statusa gornjeg osigurača
Nazivni AC napon:: 500 V
Nazivni DC napon:: 250 V
AC Prekidna moć:: 120 kA
Snaga disipacije (0,7xIn) (W):: 23 W
Pd (W):: 51 W
Radni Džulov integral (A2s):: 8.100.000
Džulov integral pre el.luka (A2s):: 2.600.000
Standardi:: IEC 60269-1, IEC 60269-2
Primena:: Za zaštitu kablova

Proizvod

Težina: 2.500 g
Net width: 95 mm
Net height: 200,1 mm
Net depth: 121 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400151629
Basic packaging weight: 2,599 kg
Basic Packaging Dimensions Height: 0,1 m
Basic Packaging Dimensions Width: 0,212 m
Basic Packaging Dimensions Depth: 0,152 m
Basic packaging volume: 0,003 m³

Transportno pakovanje

Transport packaging quantity: 4 pcs
EAN code for a transport packaging: 3838400151636
Transport packaging weight: 10,718 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,365 m
Transport Packaging Dimensions Depth: 0,25 m
Transport packaging volume: 0,023 m³
Pallet quantity: 144 pcs
Customs tariff: 85361090

Rated switching capacity AC: 120 kA
Voltage type: AC/DC
Fuse construction type according to IEC 60269: NH4a
Rated voltage AC: 500
Power loss at rated current: 51 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 710 A
Rated voltage DC: 250
Utilization category: gG (cable protection/equipment protection)

ETIM klasifikacija – verzija 9.0
