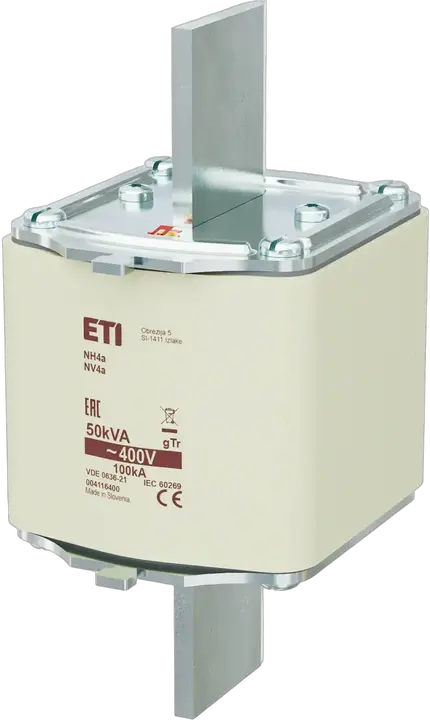

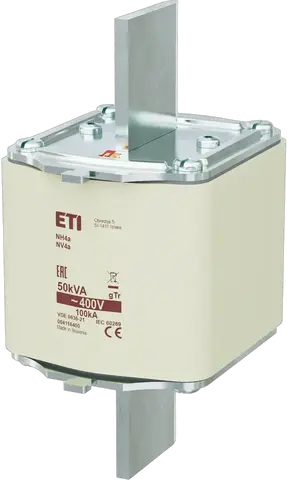

NH4a gTr 72A/400V/50kVA Topljivi osigurač

ETI kod:: 004116400
Tip osigurača:: NH
Veličina:: NH4a
Transformator:: 50 kVA
Karakteristika:: gTr
Indikator:: Indikator statusa gornjeg osigurača
Nazivni AC napon:: 400 V
AC Prekidna moć:: 100 kA
Pd (W):: 8,5 W
Standardi:: VDE 0636-2011
Primena:: Zaštita transformatora

Pribor

Proizvod

Težina: 2.810 g
Net width: 95 mm
Net height: 200,1 mm
Net depth: 121 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895401223
Basic packaging weight: 2,909 kg
Basic Packaging Dimensions Height: 0,1 m
Basic Packaging Dimensions Width: 0,212 m
Basic Packaging Dimensions Depth: 0,152 m
Basic packaging volume: 0,003 m³

Transportno pakovanje

Transport packaging quantity: 4 pcs
EAN code for a transport packaging: 3838895635000
Transport packaging weight: 11,958 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,365 m
Transport Packaging Dimensions Depth: 0,25 m
Transport packaging volume: 0,023 m³
Pallet quantity: 144 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH4a
Rated voltage AC: 400
Power loss at rated current: 8,5 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 72 A
Utilization category: gTr (Transformer protection)

ETIM klasifikacija – verzija 9.0
