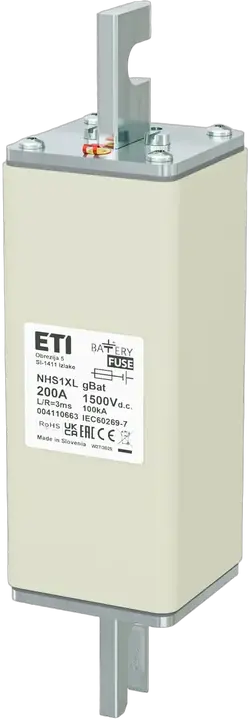

NHS1XL gBat 200A/1500V DC Topljivi osigurač

ETI kod:: 004110663
Tip osigurača:: NH-S
Veličina:: NH1XL
Nazivna struja:: 200 A
Karakteristika:: gBat
Indikator:: Indikator statusa gornjeg osigurača
Nazivni DC napon:: 1500 V
DC Prekidna moć:: 100 kA
L/R (ms):: 3 ms
Snaga disipacije (0,7xIn) (W):: 13,7 W
Pd (W):: 32,5 W
Džulov integral pre el.luka (A2s):: 27.500
Radni Džulov integral (A2s):: 160.000
Standardi:: IEC 60269-7
Primena:: Zaštita baterija

Proizvod

Težina: 950 g
Net width: 51 mm
Net height: 198 mm
Net depth: 51 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895842590
Basic packaging weight: 0,95 kg
Basic Packaging Dimensions Height: 0,055 m
Basic Packaging Dimensions Width: 0,205 m
Basic Packaging Dimensions Depth: 0,076 m
Basic packaging volume: 0,001 m³

Transportno pakovanje

Transport packaging quantity: 16 pcs
EAN code for a transport packaging: 3838895842606
Transport packaging weight: 15,55 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 832 pcs
Customs tariff: 85351000

Voltage type: DC
Fuse construction type according to IEC 60269: 1XL
Power loss at rated current: 32,5 W
Rated switching capacity DC: 100 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 200 A
Rated voltage DC: 1.500
Utilization category: Other

ETIM klasifikacija – verzija 9.0
