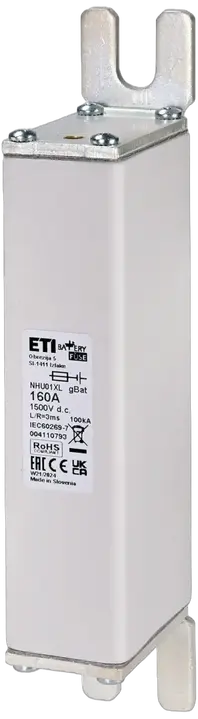

NHU01XL gBat 160A/1500V DC Topljivi osigurač

ETI kod:: 004110793
Tip osigurača:: NH-U
Veličina:: NH01XL
Nazivna struja:: 160 A
Karakteristika:: gBat
Indikator:: Indikator statusa gornjeg osigurača
Nazivni DC napon:: 1500 V
DC Prekidna moć:: 100 kA
L/R (ms):: 3 ms
Snaga disipacije (0,7xIn) (W):: 17 W
Pd (W):: 46 W
Džulov integral pre el.luka (A2s):: 13.000
Radni Džulov integral (A2s):: 104.000
Standardi:: IEC 60269-7
Primena:: Zaštita baterija

Proizvod

EAN code for a single product: 3838400022974
Težina: 450 g
Net width: 29 mm
Net height: 178 mm
Net depth: 51 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838400022981
Basic packaging weight: 1,39 kg
Basic Packaging Dimensions Height: 0,066 m
Basic Packaging Dimensions Width: 0,091 m
Basic Packaging Dimensions Depth: 0,196 m
Basic packaging volume: 0,001 m³

Transportno pakovanje

Transport packaging quantity: 30 pcs
EAN code for a transport packaging: 3838400022998
Transport packaging weight: 14,25 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 1.560 pcs
Customs tariff: 85351000

Voltage type: DC
Fuse construction type according to IEC 60269: 01XL
Power loss at rated current: 46 W
Rated switching capacity DC: 100 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 160 A
Rated voltage DC: 1.500
Utilization category: Other

ETIM klasifikacija – verzija 9.0
