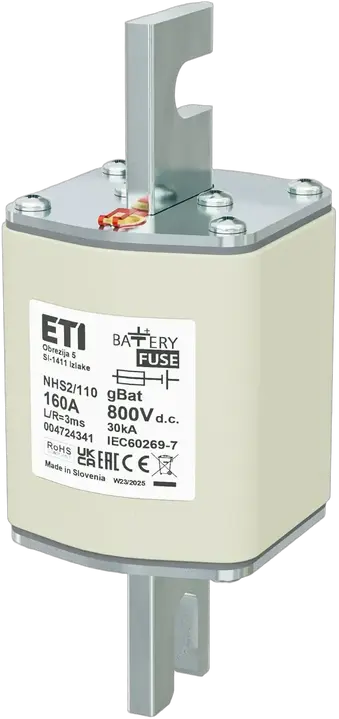

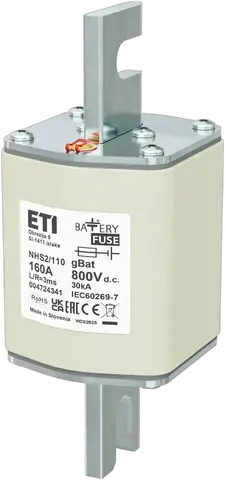

NHS2/110 gBat 160A/800V DC Topljivi osigurač

ETI kod:: 004724341
Tip osigurača:: NH-S
Veličina:: NH2
Nazivna struja:: 160 A
Karakteristika:: gBat
Indikator:: Indikator statusa gornjeg osigurača
Nazivni DC napon:: 800 V
DC Prekidna moć:: 30 kA
L/R (ms):: 3 ms
Snaga disipacije (0,7xIn) (W):: 11,7 W
Pd (W):: 26 W
Džulov integral pre el.luka (A2s):: 4.300
Radni Džulov integral (A2s):: 25.499
Standardi:: IEC 60269-7
Primena:: Zaštita baterija

Proizvod

EAN code for a single product: 3838895760474
Težina: 700 g
Net width: 54 mm
Net height: 139 mm
Net depth: 59 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895708254
Basic packaging weight: 2,176 kg
Basic Packaging Dimensions Height: 0,079 m
Basic Packaging Dimensions Width: 0,17 m
Basic Packaging Dimensions Depth: 0,17 m
Basic packaging volume: 0,002 m³

Transportno pakovanje

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895708261
Transport packaging weight: 17,954 kg
Transport Packaging Dimensions Height: 0,23 m
Transport Packaging Dimensions Width: 0,38 m
Transport Packaging Dimensions Depth: 0,38 m
Transport packaging volume: 0,033 m³
Pallet quantity: 576 pcs
Customs tariff: 85361090

Voltage type: DC
Fuse construction type according to IEC 60269: NH2
Power loss at rated current: 26 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 160 A
Rated voltage DC: 800
Utilization category: Other

ETIM klasifikacija – verzija 9.0
