004186439

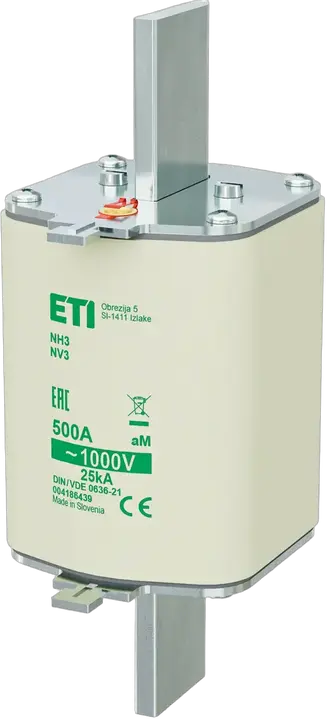

NH3/85 aM 500A/1000V Topljivi osigurač

ETI kod:: 004186439
Tip osigurača:: NH
Veličina:: NH3/85
Nazivna struja:: 500 A
Karakteristika:: aM
Indikator:: Indikator statusa gornjeg osigurača
Nazivni AC napon:: 1000 V
AC Prekidna moć:: 25 kA
Pd (W):: 60 W
Džulov integral pre el.luka (A2s):: 700.000
Radni Džulov integral (A2s):: 4.000.000
Standardi:: VDE 0636-2011
Primena:: Za zaštitu releja, sklopnika i motilia u slučaju kratkog spoja

Pribor

Proizvod

Težina: 980 g
Net width: 64 mm
Net height: 170 mm
Net depth: 84 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895638490
Basic packaging weight: 1,04 kg
Basic Packaging Dimensions Height: 0,077 m
Basic Packaging Dimensions Width: 0,224 m
Basic Packaging Dimensions Depth: 0,102 m
Basic packaging volume: 0,002 m³

Transportno pakovanje

Transport packaging quantity: 9 pcs
EAN code for a transport packaging: 3838895638506
Transport packaging weight: 9,71 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 468 pcs
Customs tariff: 85361090

Rated switching capacity AC: 25 kA
Voltage type: AC
Fuse construction type according to IEC 60269: Other
Rated voltage AC: 1.000
Power loss at rated current: 60 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 500 A
Utilization category: aM (switchgear protection)
