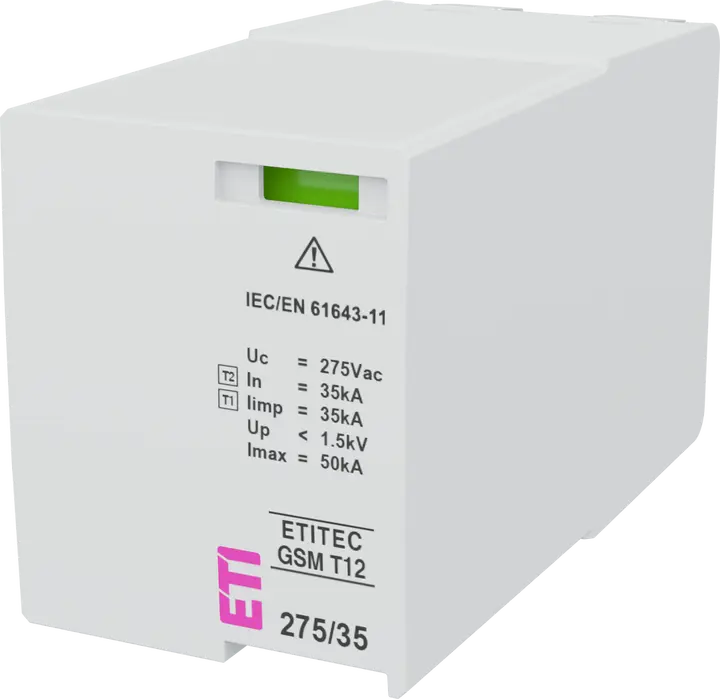

MOD. GSM T12 275/35 Odvodnik prenapona

ETI kod:: 002440718
Nazivni AC napon:: 230 V
Sistem uzemljenja:: TN/TT
Grupa kataloga 1:: ETITEC GSM
Instalacija:: Zaštita kuće i stanova
IP zaštita:: IP20
Struja curenja:: No
Primenjena tehnologija:: GDT
Dubina ugradnje (mm):: 735 mm
Tip odvodnika prenapona:: T1, T2
AC maks. trajni radni napon Uc:: 275 V
Funkcija:: SPD Modul
Za upotrebu sa:: ETITEC GSM T12
Tip struje:: AC
Maksimalna odvodna struja (10/350) Iimp (kA):: 35 kA
In (8/20):: 35 kA

Deklaracija

Proizvod

Težina: 0,183 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895965930
Basic packaging weight: 0,194 kg
Basic Packaging Dimensions Height: 91 mm
Basic Packaging Dimensions Width: 41 mm
Basic Packaging Dimensions Depth: 48 mm
Basic packaging volume: 0,179 dm³

Transportno pakovanje

Transport packaging quantity: 14 pcs
EAN code for a transport packaging: 3838895965947
Transport packaging weight: 2,797 kg
Transport Packaging Dimensions Height: 109 mm
Transport Packaging Dimensions Width: 352 mm
Transport Packaging Dimensions Depth: 115 mm
Transport packaging volume: 4,412 dm³
Pallet quantity: 3.164 pcs
Customs tariff: 85363090

System configuration TN-C: Da
Nominal voltage AC: 230 V
Test class: Type 1 + 2
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 2 modular spacing
Lightning impulse current (10/350 µs): 35 kA
Specific energy (W/R): 306,25 kJ/Ohm
System configuration TN-S: Da
Voltage protection level: 1,5 kV
System configuration TN: Da
Number of poles: 1
System configuration TT: Da
Signalling at the device: Optical
Max. continuous voltage AC: 275 V

ETIM klasifikacija – verzija 9.0
