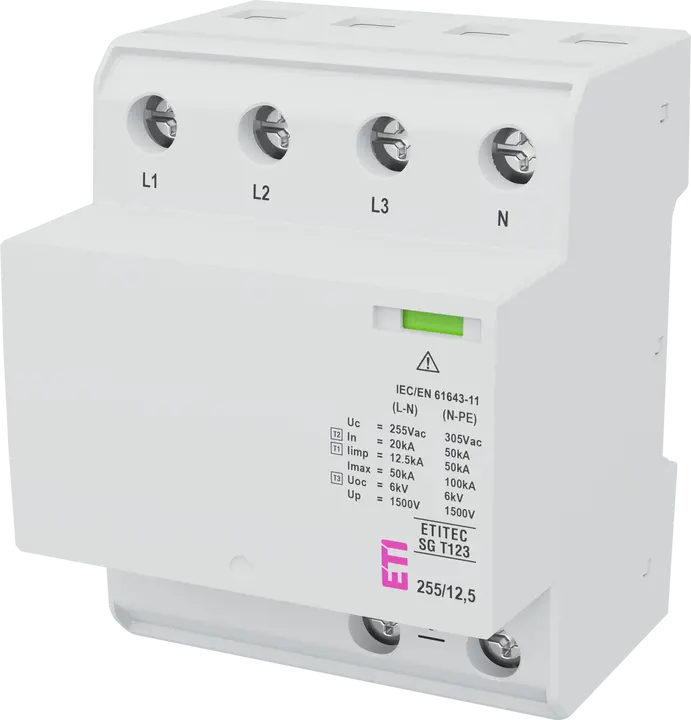

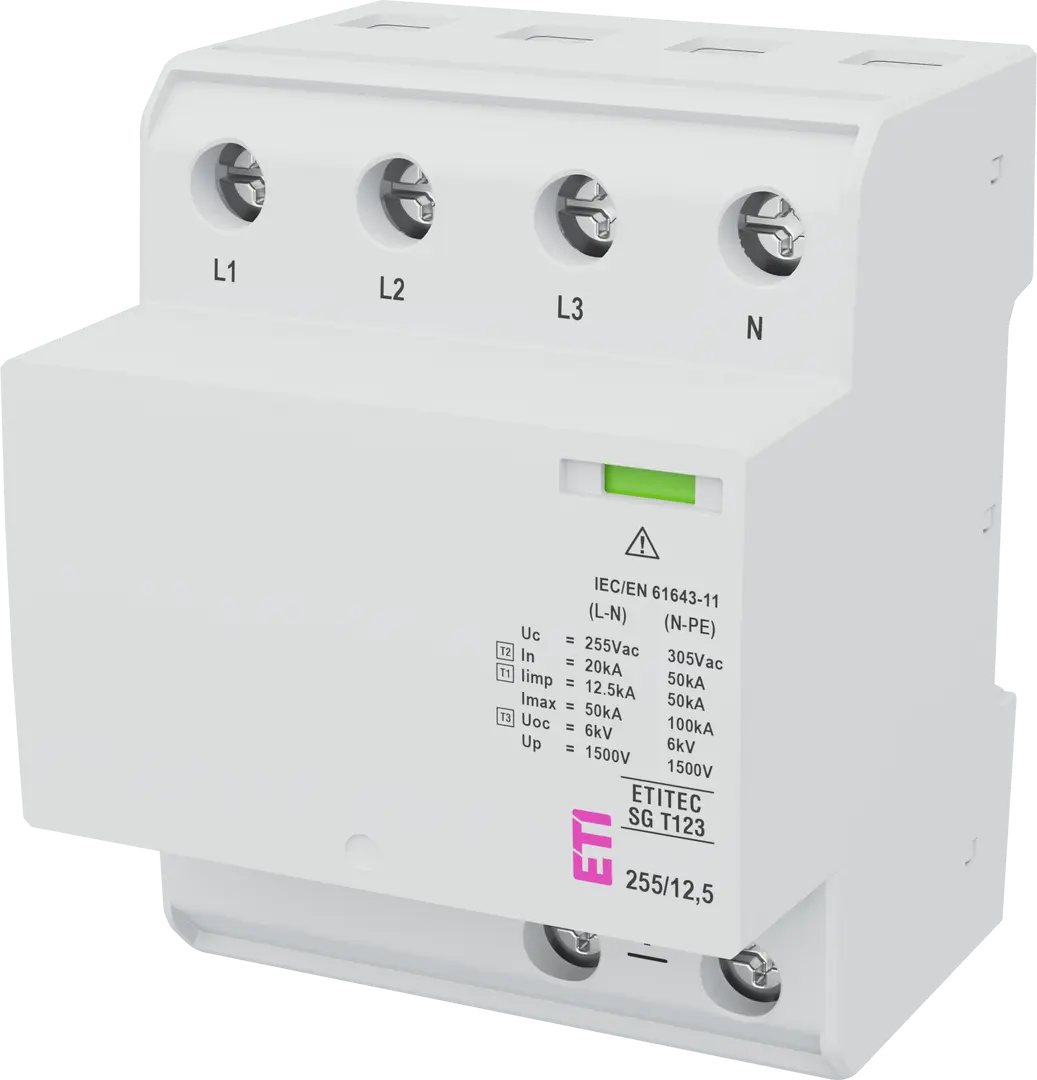

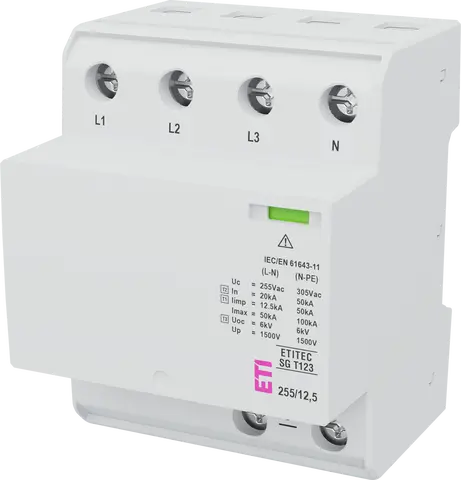

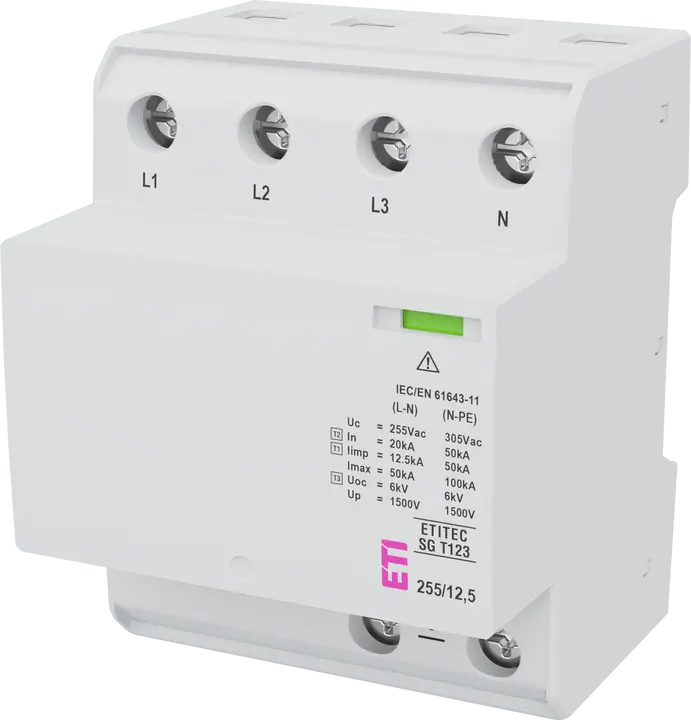

ETITEC SG T123 255/12,5 3+1 RC Odvodnik prenapona

ETI kod:: 002440795
Funkcija:: Ogranicznik przepięć
Tip odvodnika prenapona:: T1, T3, T2
AC maks. trajni radni napon Uc:: 255 V
Maksimalna odvodna struja (10/350) Iimp (kA):: 12,5 kA
In (8/20):: 20 kA
Imax(8/20) [kA]:: 50 kA
Tip struje:: AC
Nazivni AC napon:: 230
Up - Zaštitni naponski nivo (kV):: 1,5 kV
Maksimalni rezervni osigurač za zaštitu od kratkog spoja:: 250 A
Daljinska signalizacija:: Yes
Struja curenja:: No
Sistem uzemljenja:: TT, TN-S
Broj modula:: 4
Instalacija:: Home and residental building protection
Dubina ugradnje (mm):: 65 mm
IP zaštita:: IP20
Primenjena tehnologija:: GDT
Grupa kataloga 1:: ETITEC SG

Proizvod

Težina: 0,432 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400161024
Basic packaging weight: 0,458 kg
Basic Packaging Dimensions Height: 82 mm
Basic Packaging Dimensions Width: 102 mm
Basic Packaging Dimensions Depth: 110 mm
Basic packaging volume: 0,92 dm³

Transportno pakovanje

Transport packaging quantity: 4 pcs
EAN code for a transport packaging: 3838400161017
Transport packaging weight: 1,913 kg
Transport Packaging Dimensions Height: 109 mm
Transport Packaging Dimensions Width: 115 mm
Transport Packaging Dimensions Depth: 352 mm
Transport packaging volume: 4,412 dm³
Pallet quantity: 720 pcs
Customs tariff: 85363090

Voltage protection level L-PE: 1,5 kV
Energy-coordinated protection effect with regard to the terminal equipment: Da
Max. conductor cross section flexible (fine-strand): 25 mm²
Remote signalling: Da
Voltage switching spark gap technology: Da
Voltage protection level L-N: 1,5 kV
Nominal voltage AC: 230 V
Max. conductor cross section solid (solid, stranded): 35 mm²
Test class: Type 1 and 2 and 3
Degree of protection (IP): IP20
Mounting method: DIN rail (top hat rail) 35 mm
Construction size: 4 modular spacing
Lightning impulse current (10/350 µs): 12,5 kA
Specific energy (W/R): 39 kJ/Ohm
System configuration TN-S: Da
Max. overcurrent protection device, parallel connection (fuse): 250 A
Voltage protection level: 1,5 kV
Number of poles: 4
System configuration TT: Da
Signalling at the device: Optical
Voltage protection level N-PE: 1,5 kV
Max. continuous voltage AC: 255 V
Follow current extinguishing capability: 25 kA

ETIM klasifikacija – verzija 9.0
