Surge arresters are essential for protecting electrical and electronic equipment from overvoltages. Selecting the appropriate surge arrester and understanding its key parameters ensures optimal protection. ETI ETITEC offers a comprehensive range of high-quality surge arresters to meet various application needs.

002443015

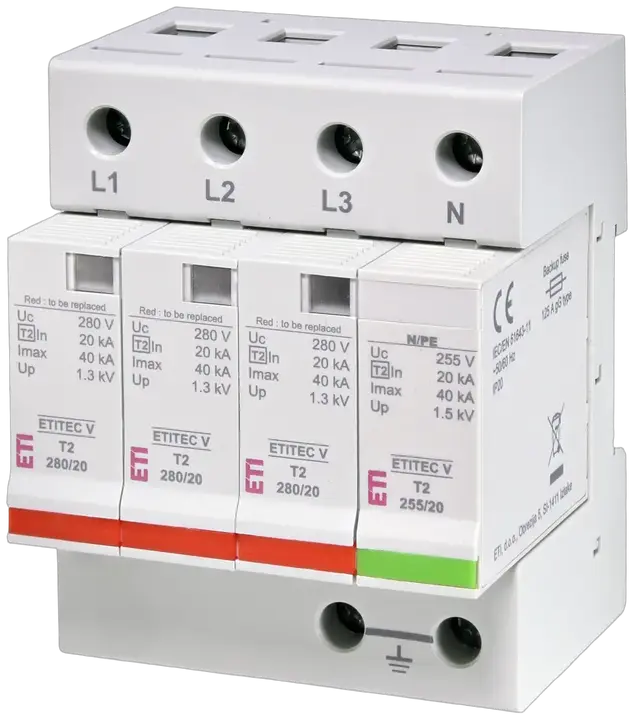

Slika ETITEC V T2 280/20 3+1

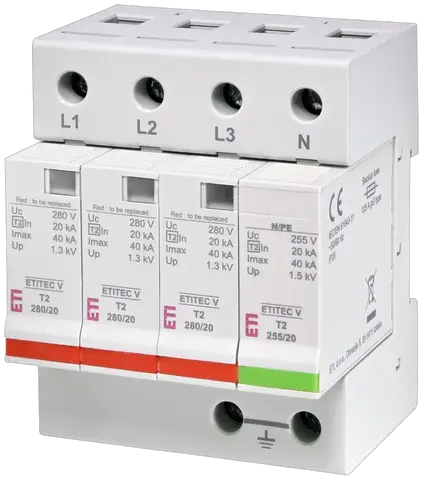

ETITEC V T2 280/20 3+1 Odvodnik prenapona

ETI kod:: 002443015
Funkcija:: SPD
Tip odvodnika prenapona:: T2
AC maks. trajni radni napon Uc:: 280 V
In (8/20):: 20 kA
Imax(8/20) [kA]:: 40 kA
Tip struje:: AC
Nazivni AC napon:: 230 V
Up - Zaštitni naponski nivo (kV):: 1,3 kV
Daljinska signalizacija:: No
Struja curenja:: Yes
Sistem uzemljenja:: TT/TN-S
Broj modula:: 4
Dubina ugradnje (mm):: 68 mm
Primenjena tehnologija:: MOV
Grupa kataloga 1:: ETITEC V

Proizvod

Težina: 0,431 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400175908
Basic packaging weight: 0,453 kg
Basic Packaging Dimensions Height: 70 mm
Basic Packaging Dimensions Width: 75 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0,525 dm³

Transportno pakovanje

Intermediate packaging quantity: 2 pcs
EAN code for a intermediate packaging: 3838400175892
Intermediate packaging weight: 1,011 kg
Intermediate Packaging Dimensions Height: 78 mm
Intermediate Packaging Dimensions Width: 105 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838400175885
Transport packaging weight: 12,892 kg
Transport Packaging Dimensions Height: 290 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28,014 dm³
Pallet quantity: 960 pcs
Customs tariff: 85363030

System configuration other: Da
Max. conductor cross section flexible (fine-strand): 25 mm²
Max. discharge surge current (8/20): 40 kA
Number of conductors (without earthing): 4
Nominal voltage AC: 230 V
Max. conductor cross section solid (solid, stranded): 35 mm²
Degree of protection (IP): IP20
Mounting method: DIN rail (top hat rail) 35 mm
Construction size: 4 modular spacing
Short-circuit breaking capacity (Isccr): 25 kA
Voltage protection level: 1,3
System configuration TT: Da
Signalling at the device: Optical
Category type 2: Da
Leakage-current free: Da
Max. continuous voltage AC: 280 V
Nominal discharge surge current (8/20): 20 kA

ETIM klasifikacija – verzija 9.0
