Surge arresters are essential for protecting electrical and electronic equipment from overvoltages. Selecting the appropriate surge arrester and understanding its key parameters ensures optimal protection. ETI ETITEC offers a comprehensive range of high-quality surge arresters to meet various application needs.

002443017

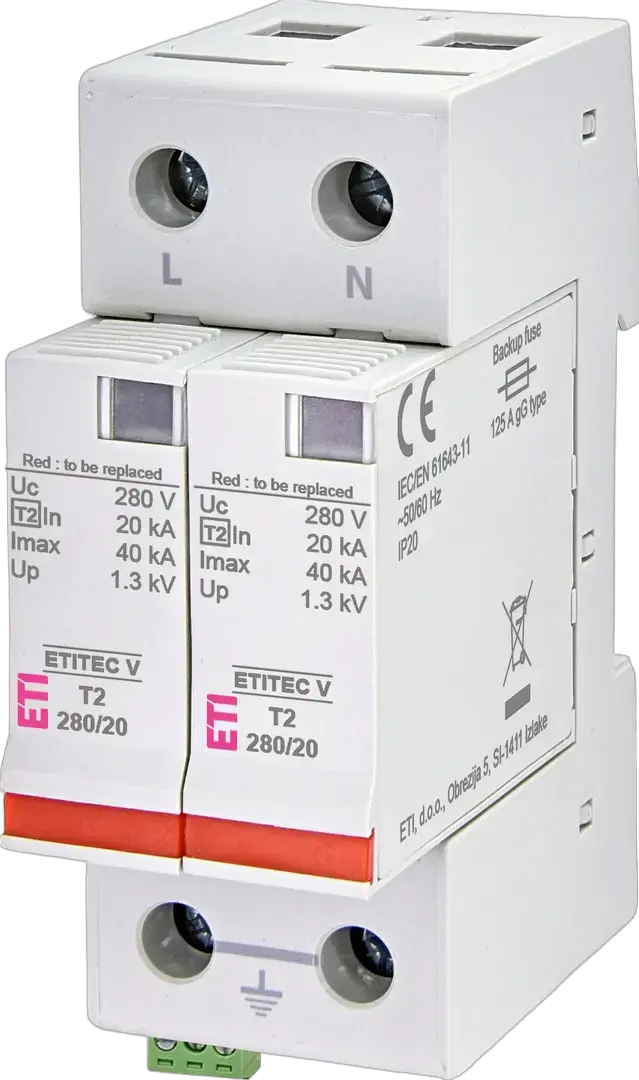

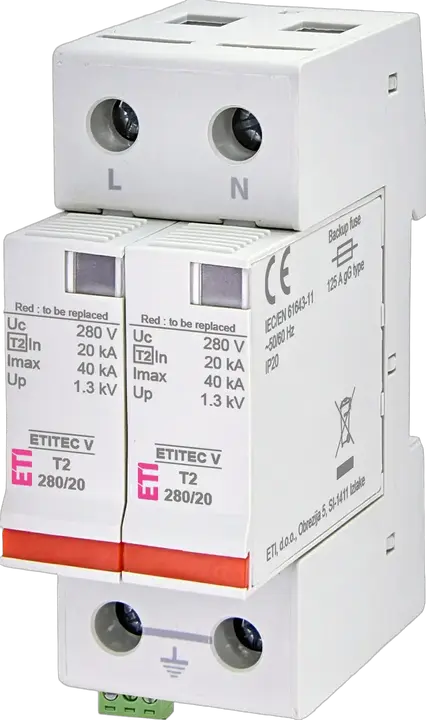

Slika ETITEC V T2 280/20 2+0 RC

ETITEC V T2 280/20 2+0 RC Odvodnik prenapona

ETI kod:: 002443017
Funkcija:: SPD
Tip odvodnika prenapona:: T2
AC maks. trajni radni napon Uc:: 280 V
In (8/20):: 20 kA
Imax(8/20) [kA]:: 40 kA
Tip struje:: AC
Nazivni AC napon:: 230 V
Up - Zaštitni naponski nivo (kV):: 1,3 kV
Daljinska signalizacija:: Yes
Struja curenja:: Yes
Sistem uzemljenja:: TN-S
Broj modula:: 2
Dubina ugradnje (mm):: 68 mm
Primenjena tehnologija:: MOV
Grupa kataloga 1:: ETITEC V

Proizvod

Težina: 0,263 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400176004
Basic packaging weight: 0,277 kg
Basic Packaging Dimensions Height: 70 mm
Basic Packaging Dimensions Width: 40 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0,28 dm³

Transportno pakovanje

Intermediate packaging quantity: 4 pcs
EAN code for a intermediate packaging: 3838400175991
Intermediate packaging weight: 1,213 kg
Intermediate Packaging Dimensions Height: 78 mm
Intermediate Packaging Dimensions Width: 105 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 48 pcs
EAN code for a transport packaging: 3838400175984
Transport packaging weight: 15,316 kg
Transport Packaging Dimensions Height: 290 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28,014 dm³
Pallet quantity: 1.920 pcs
Customs tariff: 85363030

Max. conductor cross section flexible (fine-strand): 25 mm²
Max. discharge surge current (8/20): 40 kA
Nominal voltage AC: 230 V
Max. conductor cross section solid (solid, stranded): 35 mm²
Degree of protection (IP): IP20
Mounting method: DIN rail (top hat rail) 35 mm
Short-circuit breaking capacity (Isccr): 25 kA
System configuration TN-S: Da
Voltage protection level: 1,3 kV
Signalling at the device: Optical
Category type 2: Da
Max. continuous voltage AC: 280 V
With remote signalling contact: Da
Nominal discharge surge current (8/20): 20 kA
