002443002

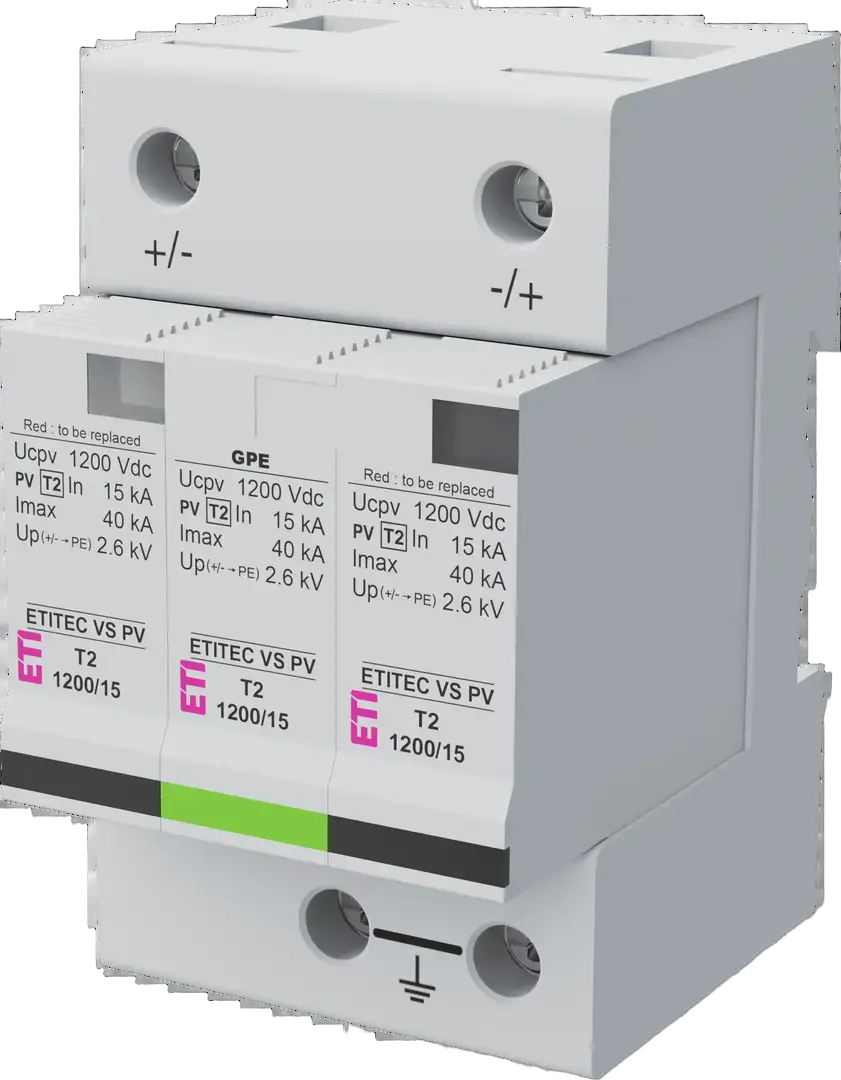

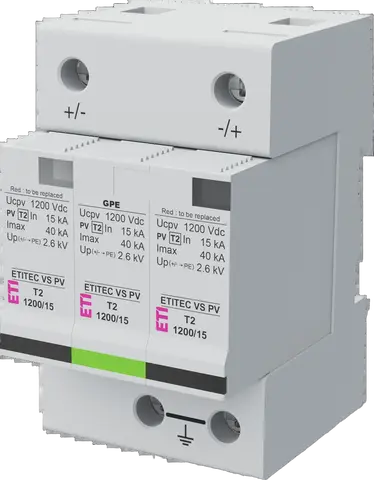

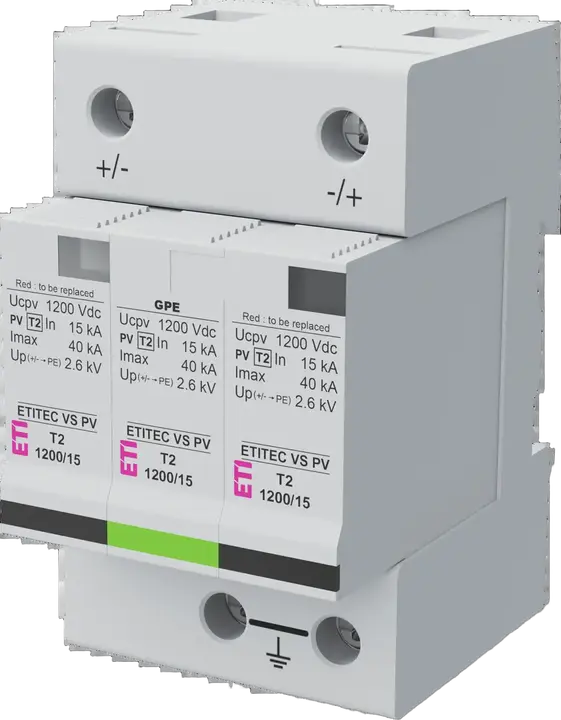

Slika ETITEC VS PV T2 1200/15

ETITEC VS PV T2 1200/15 Odvodnik prenapona

ETI kod:: 002443002
Funkcija:: SPD
Tip struje:: DC
Tip odvodnika prenapona:: T2
DC maks. trajni radni napon Uc:: 1.200 V
In (8/20):: 15 kA
Imax(8/20) [kA]:: 40 kA
Daljinska signalizacija:: No
Struja curenja:: No
Broj modula:: 3
Instalacija:: PV protection
Dubina ugradnje (mm):: 67 mm
Primenjena tehnologija:: MOV, GDT
IP zaštita:: IP20
Grupa kataloga 1:: ETITEC V PV T2

Katalog tehničkih podataka

Proizvod

Težina: 0,279 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400100283
Basic packaging weight: 0,021 kg
Basic Packaging Dimensions Height: 57 mm
Basic Packaging Dimensions Width: 70 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0,399 dm³

Transportno pakovanje

Intermediate packaging quantity: 3 pcs
EAN code for a intermediate packaging: 3838400100290
Intermediate packaging weight: 1,031 kg
Intermediate Packaging Dimensions Height: 105 mm
Intermediate Packaging Dimensions Width: 78 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 36 pcs
EAN code for a transport packaging: 3838400100306
Transport packaging weight: 12,01 kg
Transport Packaging Dimensions Height: 290 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28,014 dm³
Pallet quantity: 1.440 pcs
Customs tariff: 85363030

System configuration other: Da
Max. continuous voltage DC: 1.200 V
Number of poles: 3
System configuration DC: Da

ETIM klasifikacija – verzija 9.0
