Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

Ovaj proizvod je zastareo i nema direktnu zamenu. Za pronalaženje odgovarajuće zamene obratite se našoj tehničkoj podršci.

002921065 Zastareo

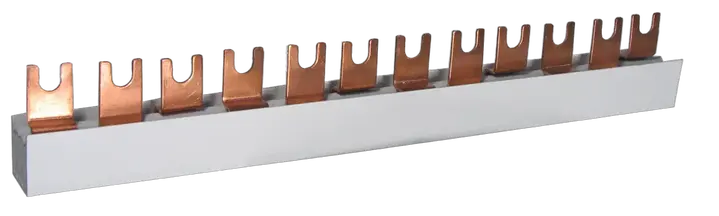

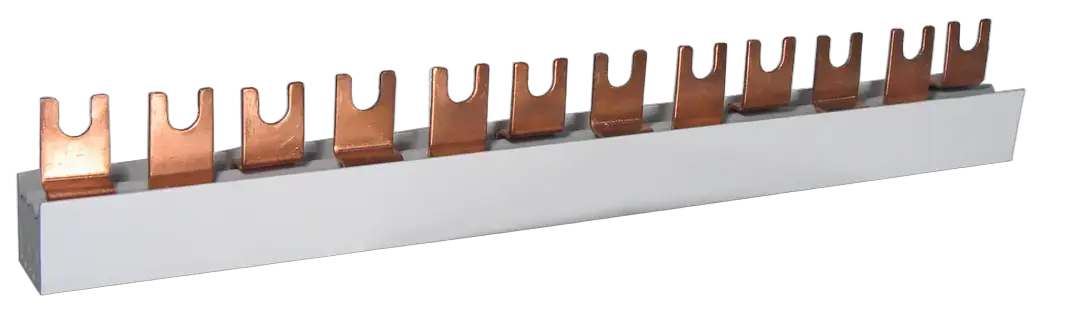

Slika * IZ16/3F/54/D

* IZ16/3F/54/D Izolovano sabirnica

ETI kod:: 002921065
Za upotrebu sa:: ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
Grupa kataloga 1:: IZ Izolovane sabirnice
Opis tipa:: Viličasti tip
Broj polova:: 3
Funkcija:: Section rails
Tip sabirnice:: FORK
Nazivna struja:: 100 A
Nazivni poprečni presek:: 16 mm²
Dužina u modulima:: 1x54
Broj faza:: 3
Nazivni AC napon:: 500 V
Nazivni DC napon:: 500 V
Vrsta pribora:: Odeljne šine

Katalog tehničkih podataka

Proizvod

Težina: 0,27 kg
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 20 pcs
EAN code for a transport packaging: 5907625307406
Transport packaging weight: 14,4 kg
Transport packaging volume: 12,2 dm³
Pallet quantity: 1.120 pcs
Customs tariff: 85389099

Cross section: 16 mm²
Number of phases: 3
Rated permanent current Iu: 100 A
Module width: 17,8 mm
Length: 1.000 mm
Max. rated operation voltage Ue: 500 V
Insulated: Da
Type of electric connection: Fork

ETIM klasifikacija – verzija 9.0
