CH14x51 gPV 16A/1100V DC Topljivi osigurač

ETI kod:: 002637185
Opis tipa:: CH
Tip osigurača:: CH
Veličina:: 14x51
Nazivna struja:: 16 A
Nazivni DC napon:: 1100 V
Karakteristika:: gPV
L/R (ms):: 2 ms
DC Prekidna moć:: 30 kA
Primena:: Za zaštitu fotonaponskih modula
Snaga disipacije (0,7xIn) (W):: 1,4 W
Pd (W):: 3,1 W
Radni Džulov integral (A2s):: 220
Džulov integral pre el.luka (A2s):: 55
Standardi:: IEC 60269-6

Pribor

Proizvod

EAN code for a single product: 3838400056801
Težina: 18,6 g
Net width: 14,3 mm
Net height: 51 mm
Net depth: 14,3 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838895791553
Basic packaging weight: 0,193 kg
Basic Packaging Dimensions Height: 0,075 m
Basic Packaging Dimensions Width: 0,105 m
Basic Packaging Dimensions Depth: 0,015 m
Basic packaging volume: 0 m³

Transportno pakovanje

Transport packaging quantity: 200 pcs
EAN code for a transport packaging: 3838895791560
Transport packaging weight: 3,941 kg
Transport Packaging Dimensions Height: 107 mm
Transport Packaging Dimensions Width: 225 mm
Transport Packaging Dimensions Depth: 165 mm
Transport packaging volume: 3,972 dm³
Pallet quantity: 34.000 pcs
Customs tariff: 85351000

Voltage type: DC
Model: Ceramic fuse
Size: 14x51 mm
Power loss at rated current: 3,1 W
Breaking capacity: 30 kA
Rated voltage: 1.100 V
Rated current: 16 A
Utilization category: gPV (photovoltaic protection)

ETIM klasifikacija – verzija 9.0

Eplan

Softver je obezbeđen kakav jeste, bez ikakvih garancija. Autor nije u obavezi da pruži podršku, uslugu, ispravke ili nadogradnje za besplatne softverske programe ili drajvere.

Pribor 6 Sav pribor

002560206

EFH 14 DC 1p 1100V

002560207

EFH 14 DC 2p 1100V

002560214

EFH 14 DC 1p LED 1100V

002560215

EFH 14 DC 2p LED 1100V

006710340

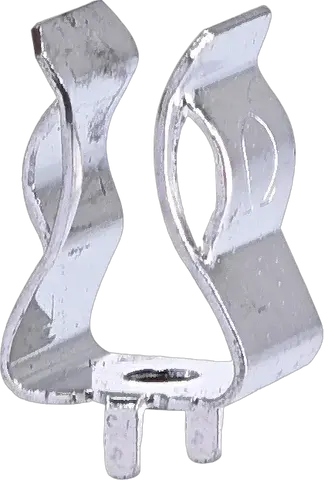

CH14-PCB
