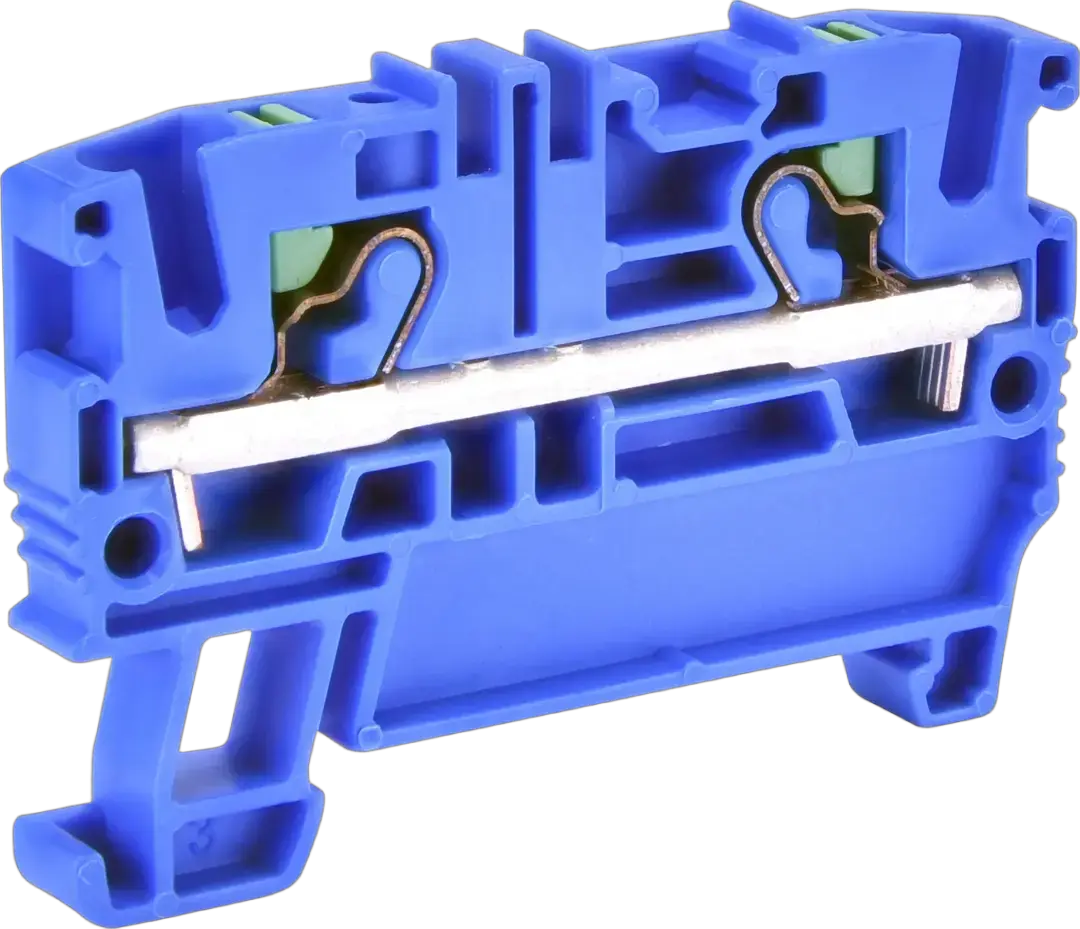

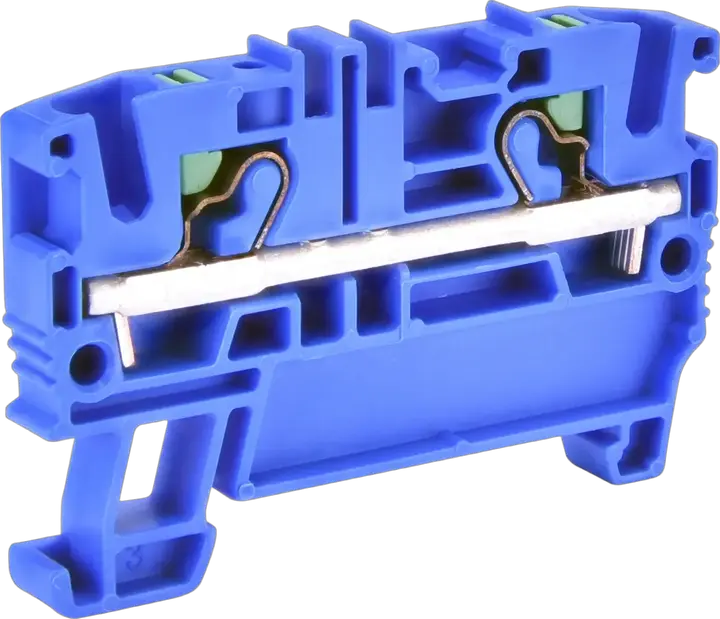

ESH-EFC.4B N stezaljka

ETI kod:: 003903256
Nazivni AC napon:: 800 V
Nazivni DC napon:: 800 V
Grupa kataloga 1:: ESH priključna stezaljka sa opružnom stezaljkom
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: ESH priključna stezaljka sa opružnom stezaljkom
Nivo:: Jednostruki
Boja:: Plava
Nazivni poprečni presek:: 4 mm²
Nazivni impulsni napon Uimp (kV):: 6 kV
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 32 mm²
Priključci za provodnik (mm²):: 2-6 mm²
Unakrsna veza:: Yes
Potreban je krejnji deo:: Yes

Pribor

Proizvod

EAN code for a single product: 3838895869610
Težina: 0,009 kg
Net width: 6,2 mm
Net height: 55,6 mm
Net depth: 37,7 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 120 pcs
EAN code for a transport packaging: 3838895869627
Transport packaging weight: 1,176 kg
Transport Packaging Dimensions Height: 90 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 100 mm
Transport packaging volume: 2,61 dm³
Pallet quantity: 42.240 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 6,2 mm
Material insulation body: Other
Rated current In: 32 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Spring clamp connection
Rated voltage: 800 V
Colour: Blue
Height: 39,2 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 6 mm²
Connectable conductor cross section multi-wired(Max): 6 mm²
Operating temperature(Max): 110 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 6 mm²

ETIM klasifikacija – verzija 9.0
