ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901131

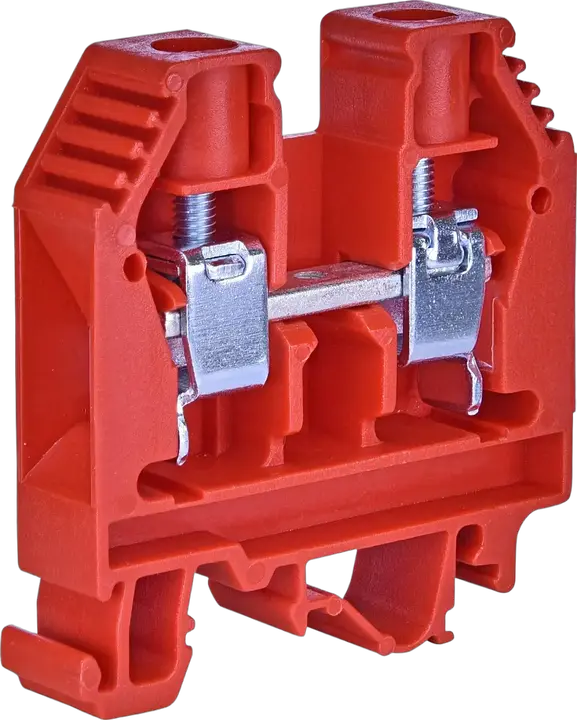

Slika VS 16 PA +

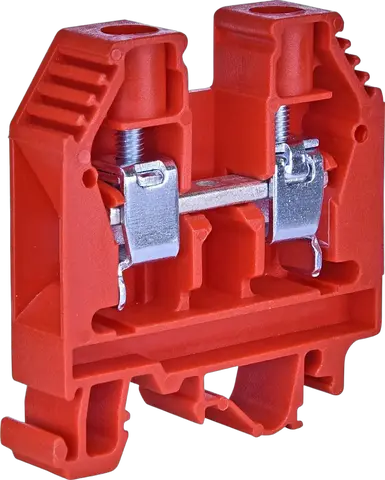

VS 16 PA + Stezaljka

ETI kod:: 003901131
Nazivni AC napon:: 660 V
Nazivni DC napon:: 660 V
Grupa kataloga 1:: SM Line-up terminali
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: SM Line-up terminali
Nivo:: Jednostruki
Boja:: Crvena
Nazivni poprečni presek:: 16 mm²
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 76 mm²
Unakrsna veza:: Yes
Potreban je krejnji deo:: Yes
Funkcija:: Redna stezaljka VS

Proizvod

EAN code for a single product: 3838400081339
Težina: 0,029 kg
Net width: 12 mm
Net height: 56 mm
Net depth: 55 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3831012325099
Transport packaging weight: 1,444 kg
Transport packaging volume: 2,16 dm³
Pallet quantity: 27.700 pcs
Customs tariff: 85369010

Width: 12 mm
Material insulation body: Thermoplastic
Rated current In: 76 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Clip connection
Closing plate required: Da
Rated voltage: 660 V
Colour: Red
Height: 56 mm
Connectable conductor cross section solid-core(Min): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 6 mm²
Connectable conductor cross section solid-core(Max): 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 16 mm²

ETIM klasifikacija – verzija 9.0
