ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901302

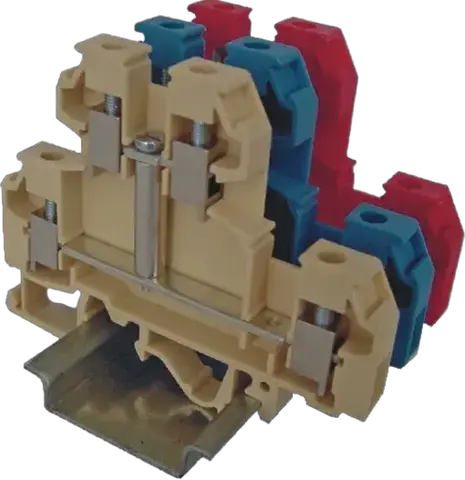

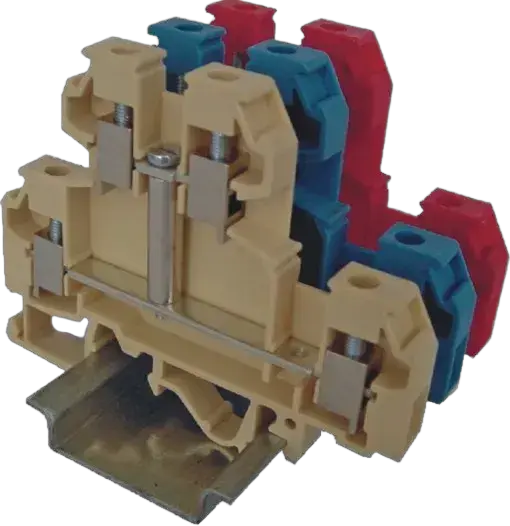

Slika VS 4 NAI +

VS 4 NAI + Stezaljka

ETI kod:: 003901302
Nazivni AC napon:: 440 V
Nazivni DC napon:: 440 V
Grupa kataloga 1:: SM Line-up terminali
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: SM Line-up terminali
Nivo:: Dvostruki
Nazivni poprečni presek:: 4 mm²
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 32 mm²
Priključci za provodnik (mm²):: 3-6 mm²
Unakrsna veza:: Yes
Potreban je krejnji deo:: Yes
Funkcija:: Dvovisinska redna stezaljka VS NAI

Proizvod

EAN code for a single product: 3838400082176
Težina: 0,021 kg
Net width: 6 mm
Net height: 54,5 mm
Net depth: 69,5 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3831012325396
Transport packaging weight: 1,044 kg
Transport packaging volume: 1,518 dm³
Pallet quantity: 38.300 pcs
Customs tariff: 85369010

Width: 6 mm
Material insulation body: Thermoplastic
Rated current In: 32 A
Mounting method: DIN rail (top hat rail) 35 mm
Basic colour: Red
Number of potentials: 1
Type of electrical connection 1: Clip connection
Closing plate required: Da
Rated voltage: 440 V
Height: 54,5 mm
Connectable conductor cross section solid-core(Min): 0,3 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,3 mm²
Connectable conductor cross section solid-core(Max): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²

ETIM klasifikacija – verzija 9.0
