ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901361

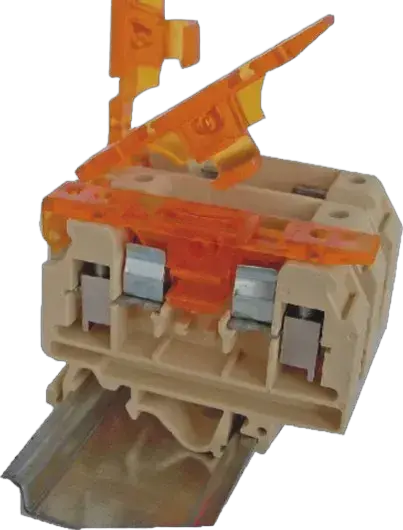

Slika VSV 4 N

VSV 4 N Stezaljka

ETI kod:: 003901361
Nazivni AC napon:: 440 V
Nazivni DC napon:: 440 V
Grupa kataloga 1:: SM Line-up terminali
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: SM Line-up terminali
Nivo:: Jednostruki
Boja:: Plava
Nazivni poprečni presek:: 4 mm²
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 32 mm²
Priključci za provodnik (mm²):: 3-4 mm²
Unakrsna veza:: No
Potreban je krejnji deo:: Yes
Funkcija:: Redna stezaljka sa držačem osigurača VSV

Proizvod

EAN code for a single product: 3838400082336
Težina: 0,016 kg
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3831012326041
Transport packaging weight: 0,809 kg
Transport packaging volume: 1,7 dm³
Pallet quantity: 49.450 pcs
Customs tariff: 85369010

Width: 8 mm
Material insulation body: Thermoplastic
Rated current In: 6,3 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Clip connection
Closing plate required: Da
Rated voltage: 440 V
Colour: Blue
Height: 55 mm
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,3 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²

ETIM klasifikacija – verzija 9.0
