ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901386

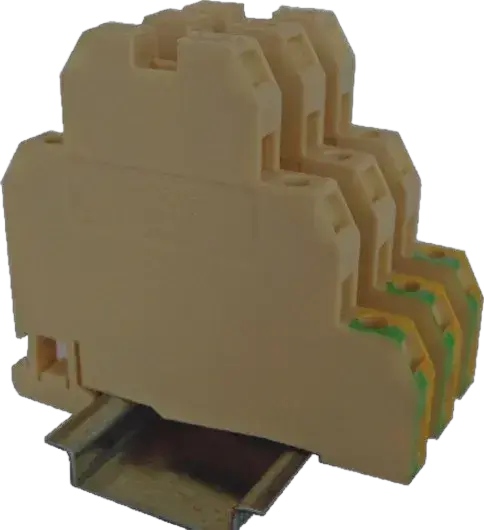

Slika VS 2,5 PE 2

VS 2,5 PE 2 Stezaljka

ETI kod:: 003901386
Nazivni AC napon:: 440 V
Nazivni DC napon:: 440 V
Grupa kataloga 1:: SM Line-up terminali
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: SM Line-up terminali
Nivo:: Višestruki
Nazivni poprečni presek:: 3.5 mm²
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 32 mm²
Priključci za provodnik (mm²):: 3-4 mm²
Unakrsna veza:: Yes
Potreban je krejnji deo:: No
Funkcija:: Viševisinska redna stezaljka sa uzemljenjem VS PE2

Proizvod

EAN code for a single product: 3838400082435
Težina: 0,023 kg
Net width: 6 mm
Net height: 65 mm
Net depth: 75,5 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3831012325464
Transport packaging weight: 1,142 kg
Transport packaging volume: 1,75 dm³
Pallet quantity: 35.050 pcs
Customs tariff: 85369010

Width: 6 mm
Material insulation body: Thermoplastic
Rated current In: 32 A
Mounting method: DIN rail (top hat rail) 35 mm
Basic colour: Other
Number of potentials: 3
PE-function: Da
Type of electrical connection 1: Clip connection
Rated voltage: 440 V
Height: 61,3 mm
Connectable conductor cross section solid-core(Min): 0,3 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,3 mm²
Connectable conductor cross section solid-core(Max): 2,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²

ETIM klasifikacija – verzija 9.0
