ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901422

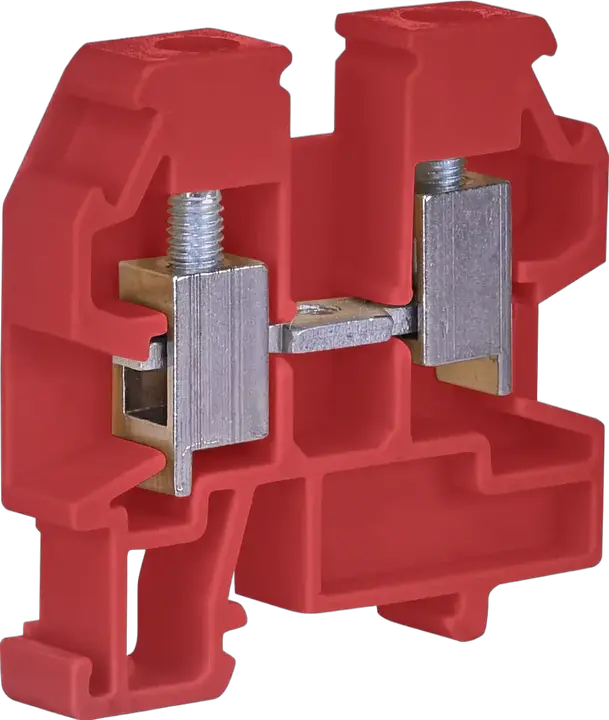

Slika VS 2,5 PAM +

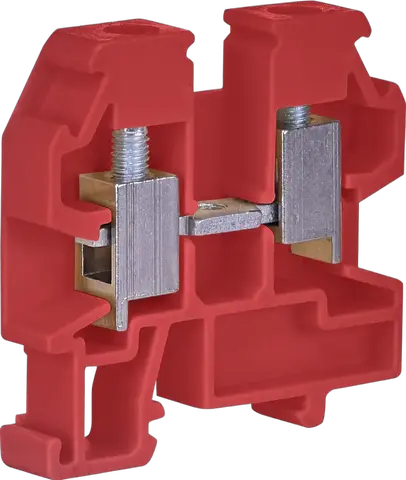

VS 2,5 PAM + Stezaljka

ETI kod:: 003901422
Nazivni AC napon:: 440 V
Nazivni DC napon:: 440 V
Grupa kataloga 1:: SM Line-up terminali
Tip montaže:: Montaža na DIN šinu TH 15
Opis tipa:: SM Line-up terminali
Nivo:: Jednostruki
Boja:: Crvena
Nazivni poprečni presek:: 2.5 mm²
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 24 mm²
Priključci za provodnik (mm²):: 3-4 mm²
Unakrsna veza:: Yes
Potreban je krejnji deo:: Yes
Funkcija:: Mini redna stezaljka VS

Proizvod

EAN code for a single product: 3838400082510
Težina: 5,47 g
Net width: 5,1 mm
Net height: 31 mm
Net depth: 34 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 100 pcs
EAN code for a transport packaging: 3831012324962
Transport packaging weight: 0,547 kg
Transport packaging volume: 0,756 dm³
Pallet quantity: 146.300 pcs
Customs tariff: 85369010

Width: 5,1 mm
Material insulation body: Thermoplastic
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 15 mm
Number of levels: 1
Type of electrical connection 1: Clip connection
Closing plate required: Da
Rated voltage: 440 V
Colour: Red
Height: 31,2 mm
Connectable conductor cross section solid-core(Min): 0,3 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,3 mm²
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 2,5 mm²

ETIM klasifikacija – verzija 9.0
