ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901620

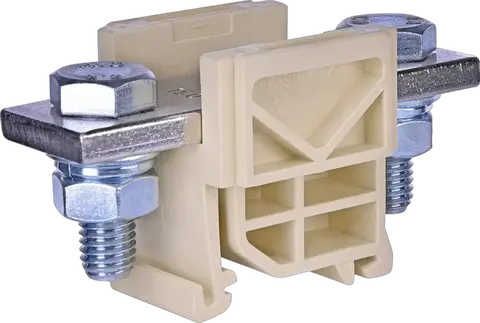

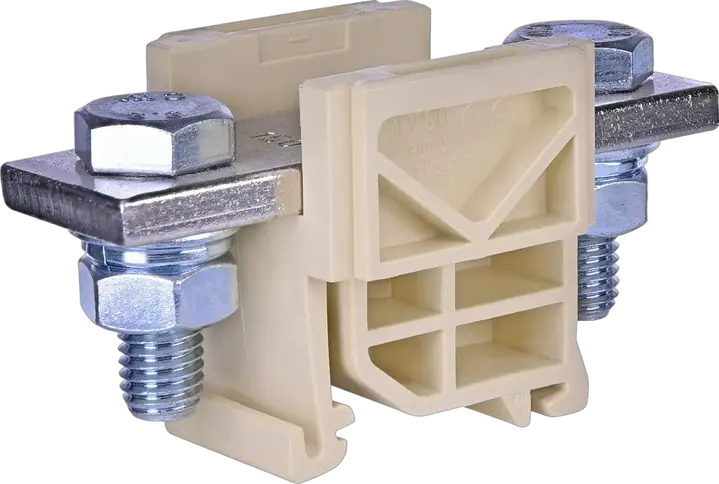

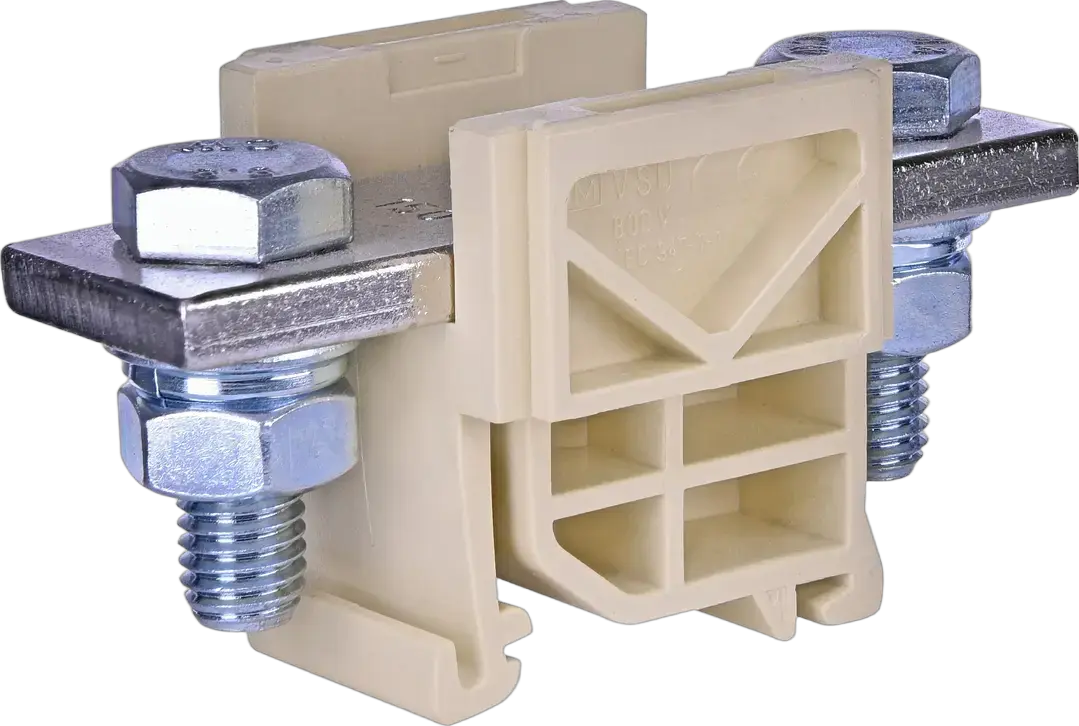

Slika VSU 150

VSU 150 Stezaljka

ETI kod:: 003901620
Nazivni AC napon:: 1000 V
Nazivni DC napon:: 1000 V
Grupa kataloga 1:: SM Line-up terminali
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: SM Line-up terminali
Nivo:: Jednostruki
Boja:: Bež
Nazivni poprečni presek:: 150 mm²
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 309 mm²
Priključci za provodnik (mm²):: 150 mm²
Unakrsna veza:: No
Potreban je krejnji deo:: No
Funkcija:: Visokostrujna redna stezaljka

Proizvod

Težina: 0,22 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895800460
Basic packaging weight: 1 kg
Basic packaging volume: 1 dm³

Transportno pakovanje

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3831012300324
Transport packaging weight: 2,2 kg
Transport packaging volume: 2,4 dm³
Pallet quantity: 3.640 pcs
Customs tariff: 85369010

Width: 42 mm
Material insulation body: Thermoplastic
Rated current In: 309 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Screw connection
Rated voltage: 1.000 V
Colour: Beige
Height: 48 mm
Connectable conductor cross section solid-core(Min): 2,5 mm²
Connectable conductor cross section solid-core(Max): 150 mm²

ETIM klasifikacija – verzija 9.0
