ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901650

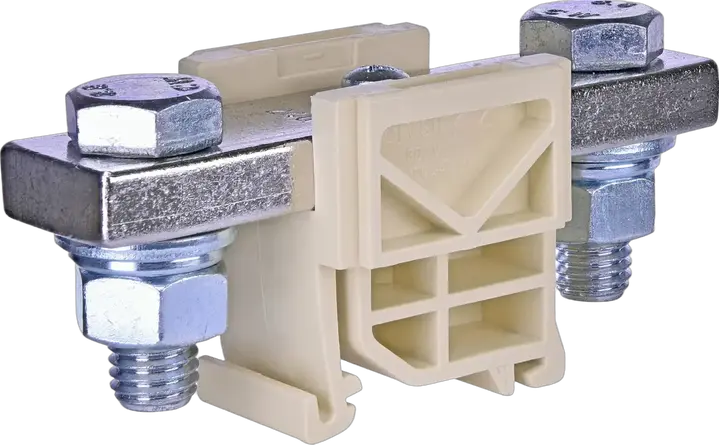

Slika VSU 240

VSU 240 Stezaljka

ETI kod:: 003901650
Nazivni AC napon:: 1000 V
Nazivni DC napon:: 1000 V
Grupa kataloga 1:: SM Line-up terminali
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: SM Line-up terminali
Nivo:: Jednostruki
Boja:: Bež
Nazivni poprečni presek:: 240 mm²
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 415 mm²
Priključci za provodnik (mm²):: 240 mm²
Unakrsna veza:: Yes
Potreban je krejnji deo:: No
Funkcija:: Visokostrujna redna stezaljka

Proizvod

EAN code for a single product: 3838400082954
Težina: 0,385 kg
Net width: 42 mm
Net height: 45 mm
Net depth: 88 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 8 pcs
EAN code for a transport packaging: 3831012300348
Transport packaging weight: 3,082 kg
Transport packaging volume: 2,36 dm³
Pallet quantity: 2.080 pcs
Customs tariff: 85369010

Width: 42 mm
Material insulation body: Thermoplastic
Rated current In: 415 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Screw connection
Rated voltage: 1.000 V
Colour: Beige
Height: 48 mm
Connectable conductor cross section solid-core(Min): 2,5 mm²
Connectable conductor cross section solid-core(Max): 240 mm²

ETIM klasifikacija – verzija 9.0
