ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901672

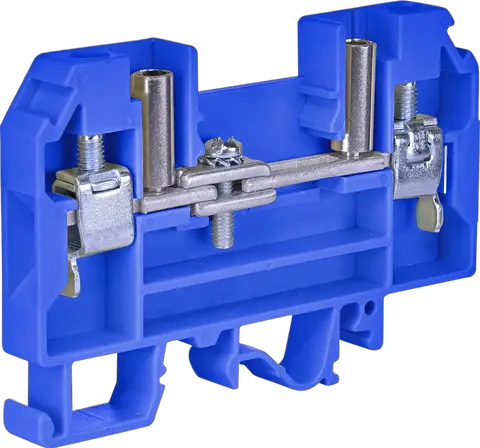

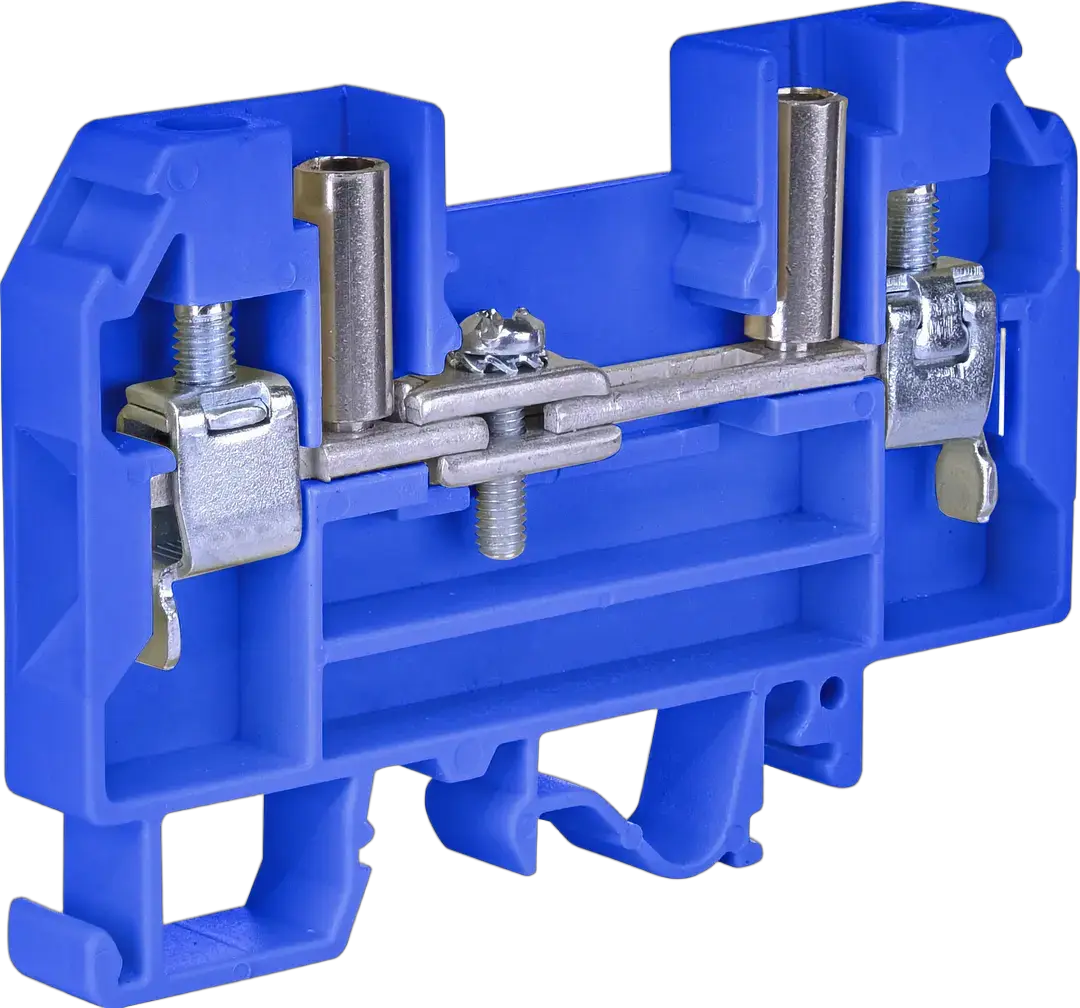

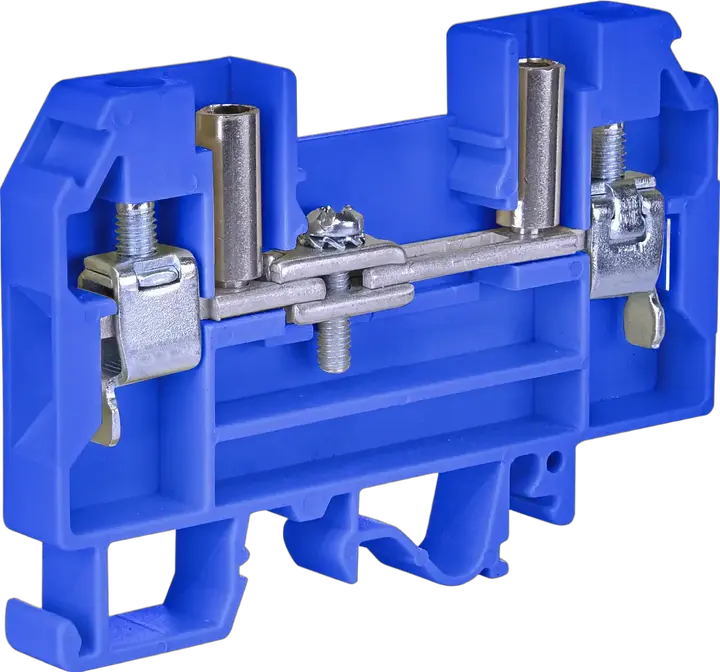

Slika VSM 6 VNP N

VSM 6 VNP N Stezaljka

ETI kod:: 003901672
Nazivni AC napon:: 600 V
Nazivni DC napon:: 600 V
Grupa kataloga 1:: SM Line-up terminali
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: SM Line-up terminali
Nivo:: Jednostruki
Boja:: Bež
Nazivni poprečni presek:: 6 mm²
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 43 mm²
Unakrsna veza:: Yes
Potreban je krejnji deo:: Yes
Funkcija:: Redna stezaljka VSM

Katalog tehničkih podataka

Proizvod

Težina: 0,026 kg
Stock unit of measure: pcs

Transportno pakovanje

Customs tariff: 85369010

Width: 8 mm
Material insulation body: Thermoplastic
Rated current In: 43 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Clip connection
Closing plate required: Da
Rated voltage: 600 V
Colour: Beige
Height: 48,1 mm
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 2,5 mm²
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 6 mm²

ETIM klasifikacija – verzija 9.0
