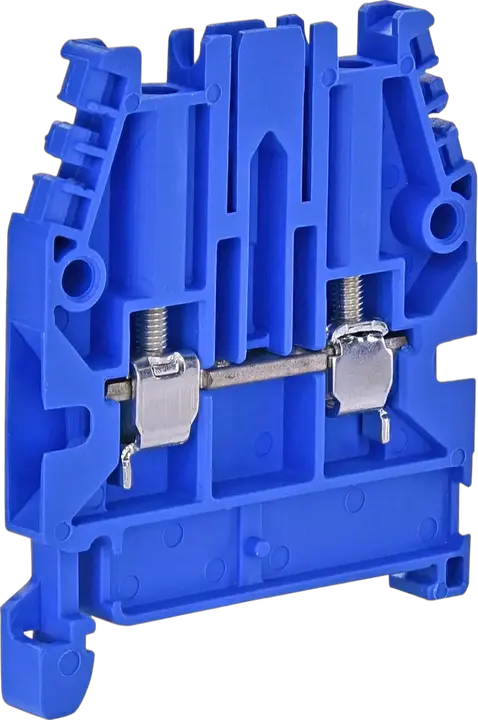

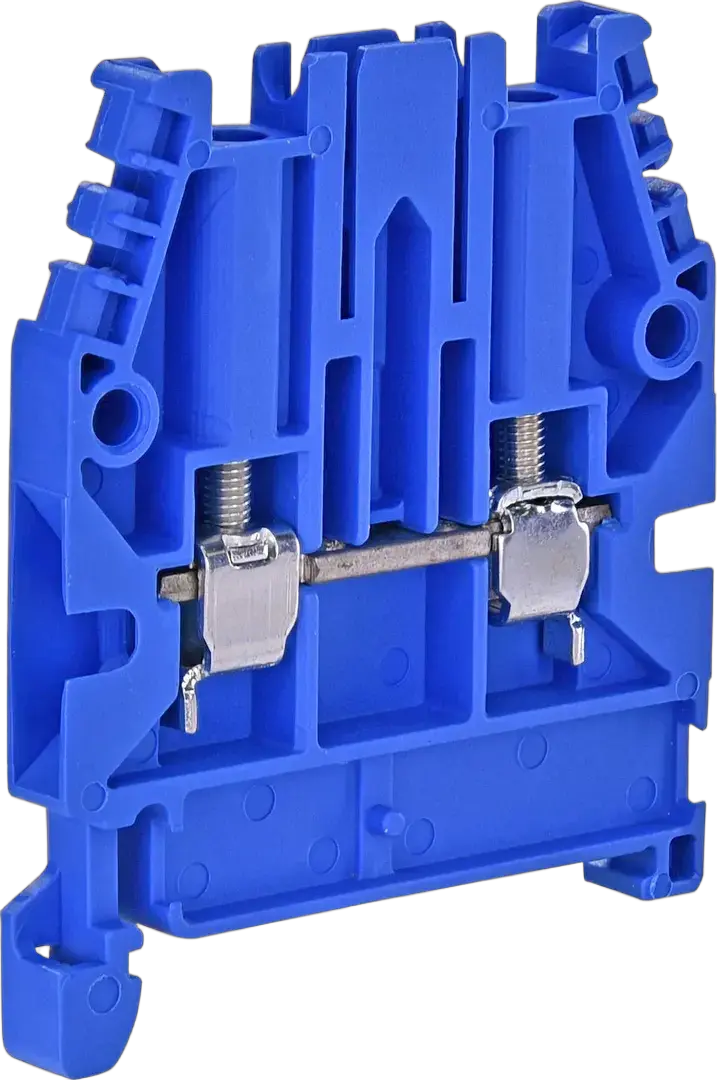

ESC-CBC.2B N stezaljka

ETI kod:: 003903044
Nazivni AC napon:: 1000 V
Nazivni DC napon:: 1000 V
Grupa kataloga 1:: Priključni blokovi tipa ES vijaka
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: Priključni blokovi tipa ES vijaka
Nivo:: Jednostruki
Boja:: Plava
Nazivni poprečni presek:: 2.5 mm²
Nazivni impulsni napon Uimp (kV):: 12 kV
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 24 mm²
Max struja sa Max poprečnim presekom (mm²):: 37 mm²
Priključci za provodnik (mm²):: 0.2-4 mm²
Unakrsna veza:: Yes
Potreban je krejnji deo:: Yes

Pribor

Proizvod

EAN code for a single product: 3838895860914
Težina: 8,2 g
Net width: 5 mm
Net height: 42,5 mm
Net depth: 50,5 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 120 pcs
EAN code for a transport packaging: 3838895788386
Transport packaging weight: 0,94 kg
Transport Packaging Dimensions Height: 55 mm
Transport Packaging Dimensions Width: 240 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,98 dm³
Pallet quantity: 54.000 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 5 mm
Material insulation body: Thermoplastic
Rated current In: 37 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Screw connection
Rated voltage: 1.000 V
Colour: Blue
Height: 52 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2,5 mm²
