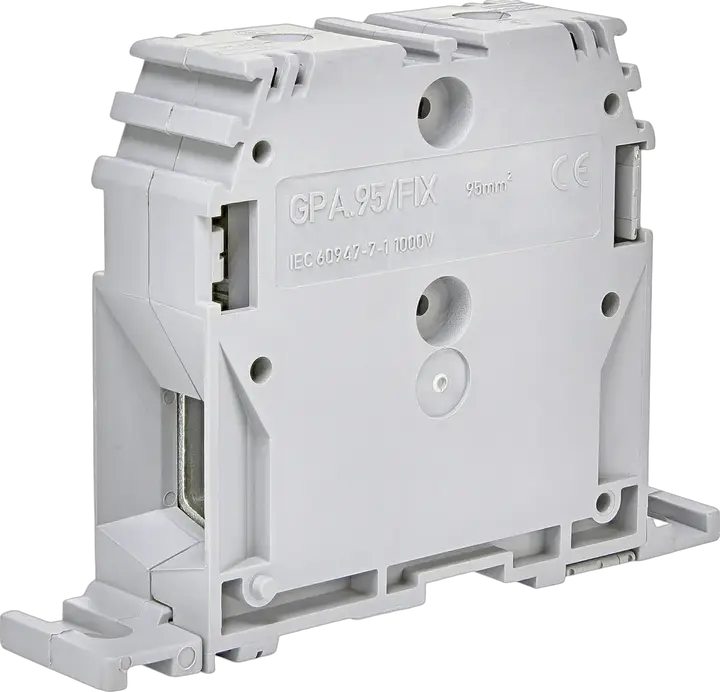

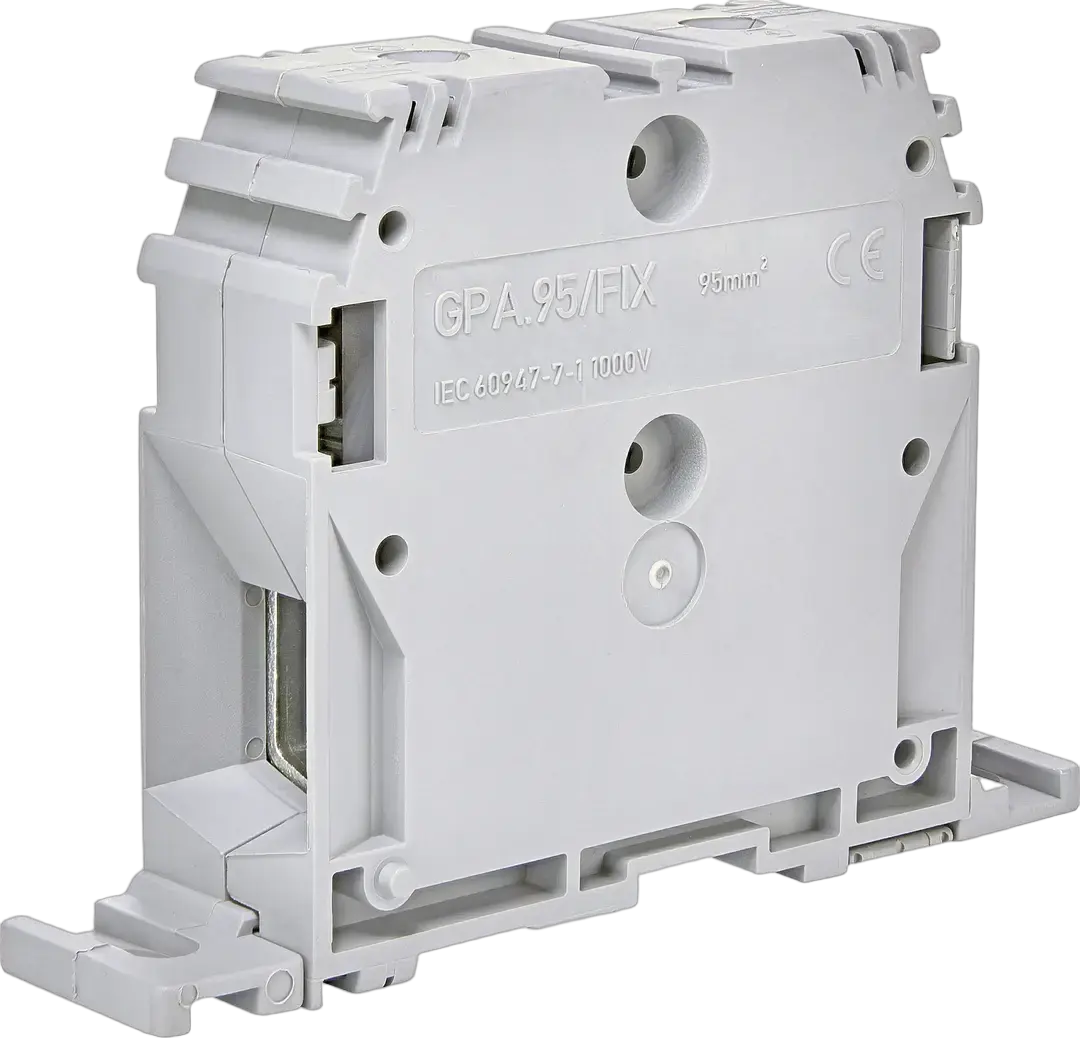

ESC-GPA.95/FIX Stezaljka

ETI kod:: 003903212
Nazivni AC napon:: 600 V
Nazivni DC napon:: 600 V
Grupa kataloga 1:: Priključni blokovi tipa ES vijaka
Tip montaže:: Montaža na montažnu ploču
Opis tipa:: Priključni blokovi tipa ES vijaka
Nivo:: Jednostruki
Boja:: Siva
Nazivni poprečni presek:: 95 mm²
Nazivni impulsni napon Uimp (kV):: 12 kV
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 232 mm²
Priključci za provodnik (mm²):: 10-120 mm²
Unakrsna veza:: No
Potreban je krejnji deo:: No

Pribor

Proizvod

EAN code for a single product: 3838895860402
Težina: 0,205 kg
Net width: 30 mm
Net height: 111 mm
Net depth: 81,62 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895830603
Transport packaging weight: 2,162 kg
Transport Packaging Dimensions Height: 115 mm
Transport Packaging Dimensions Width: 245 mm
Transport Packaging Dimensions Depth: 155 mm
Transport packaging volume: 4,367 dm³
Pallet quantity: 1.680 pcs
Customs tariff: 85369010

Width: 26 mm
Material insulation body: Thermoplastic
Rated current In: 232 A
Mounting method: Direct mounting
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Type of electrical connection 2: Screw connection
Rated voltage: 1.000 V
Colour: Grey
Height: 91 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 10 mm²
Connectable conductor cross section multi-wired(Min): 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 10 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 120 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 95 mm²
Connectable conductor cross section multi-wired(Max): 120 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 95 mm²

ETIM klasifikacija – verzija 9.0
