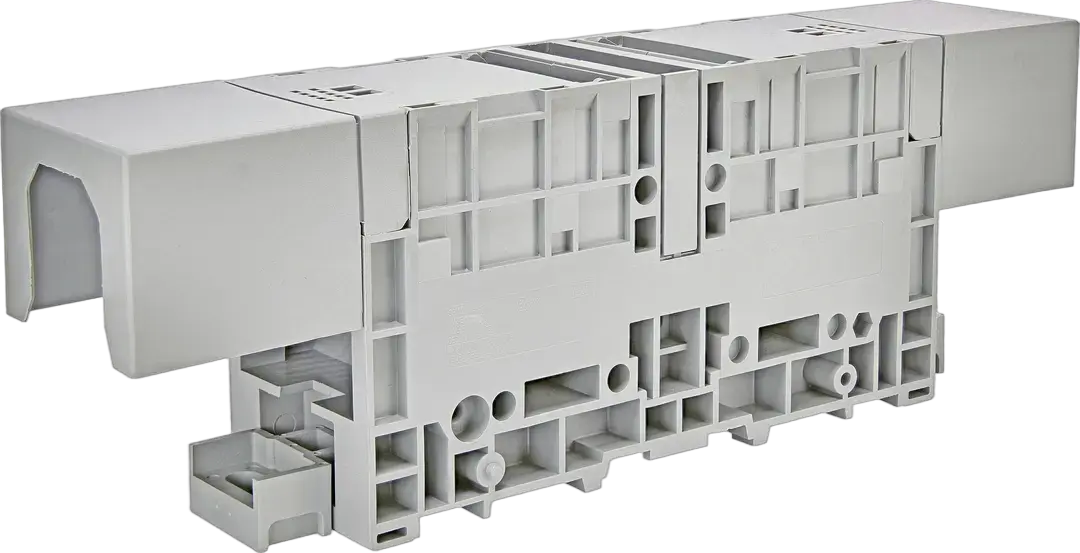

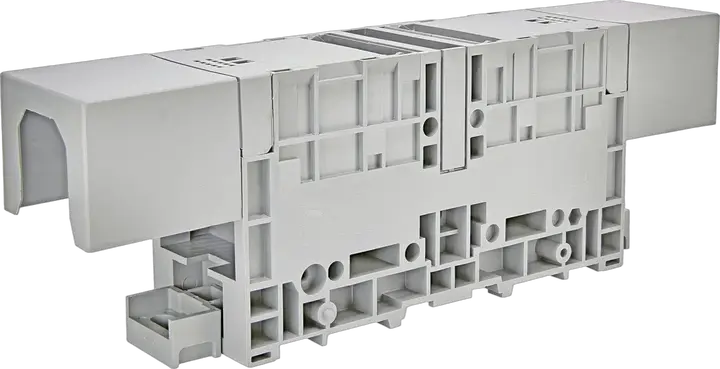

ESC-GPM.240/FIX Stezaljka

ETI kod:: 003903217
Nazivni AC napon:: 1000 V
Nazivni DC napon:: 1000 V
Grupa kataloga 1:: Priključni blokovi tipa ES vijaka
Tip montaže:: Montaža na montažnu ploču
Opis tipa:: Priključni blokovi tipa ES vijaka
Nivo:: Jednostruki
Boja:: Siva
Nazivni poprečni presek:: 240 mm²
Nazivni impulsni napon Uimp (kV):: 12 kV
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 415 mm²
Max struja sa Max poprečnim presekom (mm²):: 600 mm²
Priključci za provodnik (mm²):: 240 mm²
Unakrsna veza:: No
Potreban je krejnji deo:: No

Pribor

Proizvod

EAN code for a single product: 3838895860457
Težina: 0,552 kg
Net width: 52 mm
Net height: 250 mm
Net depth: 83,5 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 4 pcs
EAN code for a transport packaging: 3838895830665
Transport packaging weight: 2,426 kg
Transport Packaging Dimensions Height: 140 mm
Transport Packaging Dimensions Width: 307 mm
Transport Packaging Dimensions Depth: 182 mm
Transport packaging volume: 7,822 dm³
Pallet quantity: 336 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 52 mm
Material insulation body: Thermoplastic
Rated current In: 600 A
Mounting method: Direct mounting
Number of levels: 1
Type of electrical connection 1: Bolt connection
Number of clamp positions per level: 2
Type of electrical connection 2: Bolt connection
Rated voltage: 1.000 V
Colour: Grey
Height: 89 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section fine-strand with cable end sleeve(Min): 35 mm²
Operating temperature(Min): -40 °C
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 300 mm²

ETIM klasifikacija – verzija 9.0
