Thermostat switches are essential components in temperature control systems, automatically regulating temperature by switching an electrical circuit on or off based on the sensed temperature. They maintain a desired temperature range by activating heating or cooling systems as needed.

002471847

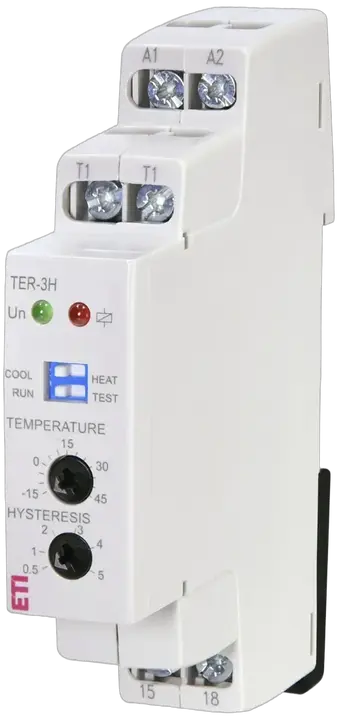

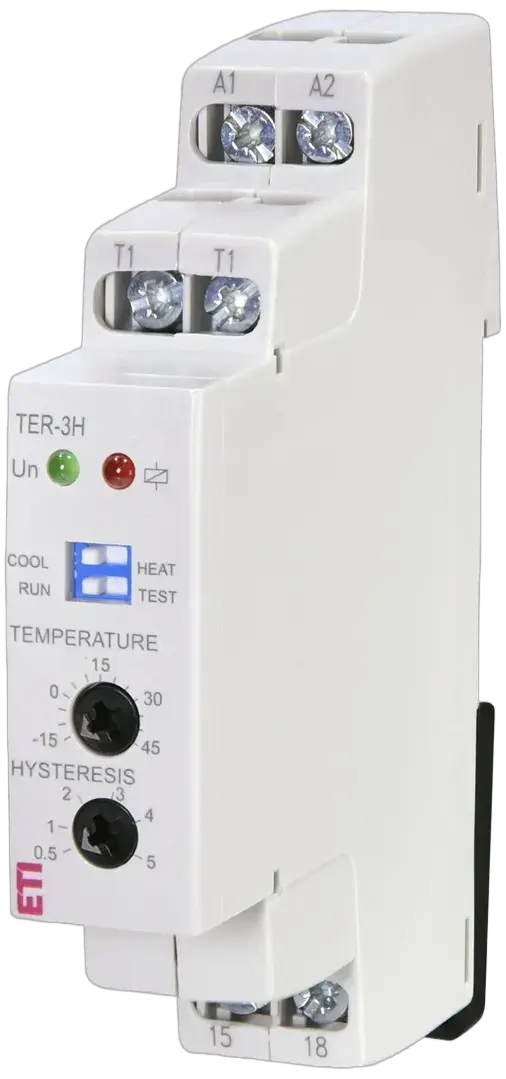

Slika TER-3H

TER-3H Upravljački relej

ETI kod:: 002471847
Kategorija:: Termostatski relej TER-3 (A, B, C)
Grupa kataloga 1:: Releji za nadzor temperature
Kataloška podgrupa:: Termostatski relej
Nazivna frekvencija (Hz):: 50 Hz
IP zaštita:: IP20
Opis tipa:: Termostatski relej TER-3 (A, B, C)
Funkcija:: Uređaji za nadzor i upravljanje
Napon napajanja (V):: 24-230 V
Temperaturni opseg (C):: -15-45 °C
Tip senzorja:: Spoljni NTC termistor
Broj kontakta:: 1
Nazivna struja:: 16 A
Tip napona:: AC/DC
Tip kontakta:: 1xNO
Maksimalna nosivost AC1 (VA):: 4.000 VA
Broj NO kontakta:: 1

Proizvod

Težina: 0,67 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895474227
Basic packaging weight: 0,073 kg
Basic packaging volume: 0,13 dm³

Transportno pakovanje

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895474234
Transport packaging weight: 0,73 kg
Transport packaging volume: 1,3 dm³
Pallet quantity: 10.960 pcs
Customs tariff: 85364900

Model: Analogue
Number of channels: 1
Degree of protection (IP): IP20
Contact type: Breaker contact
Assembly depth: 65 mm
Nominal switching current at 250 V, potential free: 16 A
Sensor type: Remote sensor
Standby power consumption (solstandby): 2 W
Width in number of modular spacings: 1
Rated frequency(Min): 50 Hz
Rated voltage(Min): 24 V
Adjustment range comfort(Min): -15 °C
Rated voltage(Max): 230 V
Adjustment range comfort(Max): 45 °C
Rated frequency(Max): 50 Hz

ETIM klasifikacija – verzija 9.0
