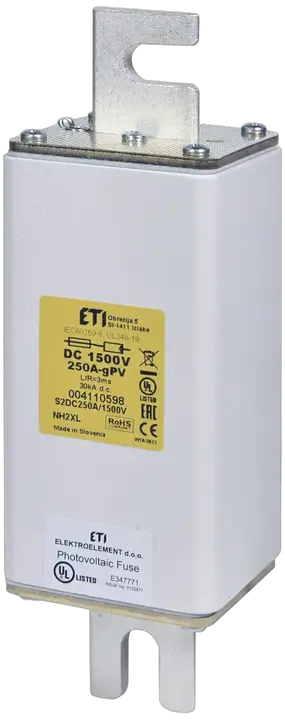

NHU2XL gPV 250A/1500V DC UL Topljivi osigurač

ETI kod:: 004110613
Tip osigurača:: NH-U
Veličina:: NH2XL
Nazivna struja:: 250 A
Karakteristika:: gPV
Indikator:: Indikator statusa gornjeg osigurača
Nazivni DC napon:: 1500 V
DC Prekidna moć:: 30 kA
L/R (ms):: 3 ms
Snaga disipacije (0,7xIn) (W):: 19,3 W
Pd (W):: 44 W
Džulov integral pre el.luka (A2s):: 73.000
Radni Džulov integral (A2s):: 132.000
UL sertifikat:: E347771
Standardi:: IEC 60269-6, UL 248-19
Primena:: Osigurač za DC primenu

Pribor

Proizvod

Težina: 1.350 g
Net width: 60 mm
Net height: 198 mm
Net depth: 60 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895737391
Basic packaging weight: 1,35 kg
Basic Packaging Dimensions Height: 0,064 m
Basic Packaging Dimensions Width: 0,222 m
Basic Packaging Dimensions Depth: 0,089 m
Basic packaging volume: 0,001 m³

Transportno pakovanje

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895737407
Transport packaging weight: 16,55 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 624 pcs
Customs tariff: 85351000

Voltage type: DC
Fuse construction type according to IEC 60269: 2XL
Power loss at rated current: 44 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 250 A
Rated voltage DC: 1.500
Utilization category: gPV (photovoltaic protection)
