Surge arresters are essential for protecting electrical and electronic equipment from overvoltages. Selecting the appropriate surge arrester and understanding its key parameters ensures optimal protection. ETI ETITEC offers a comprehensive range of high-quality surge arresters to meet various application needs.

002442996

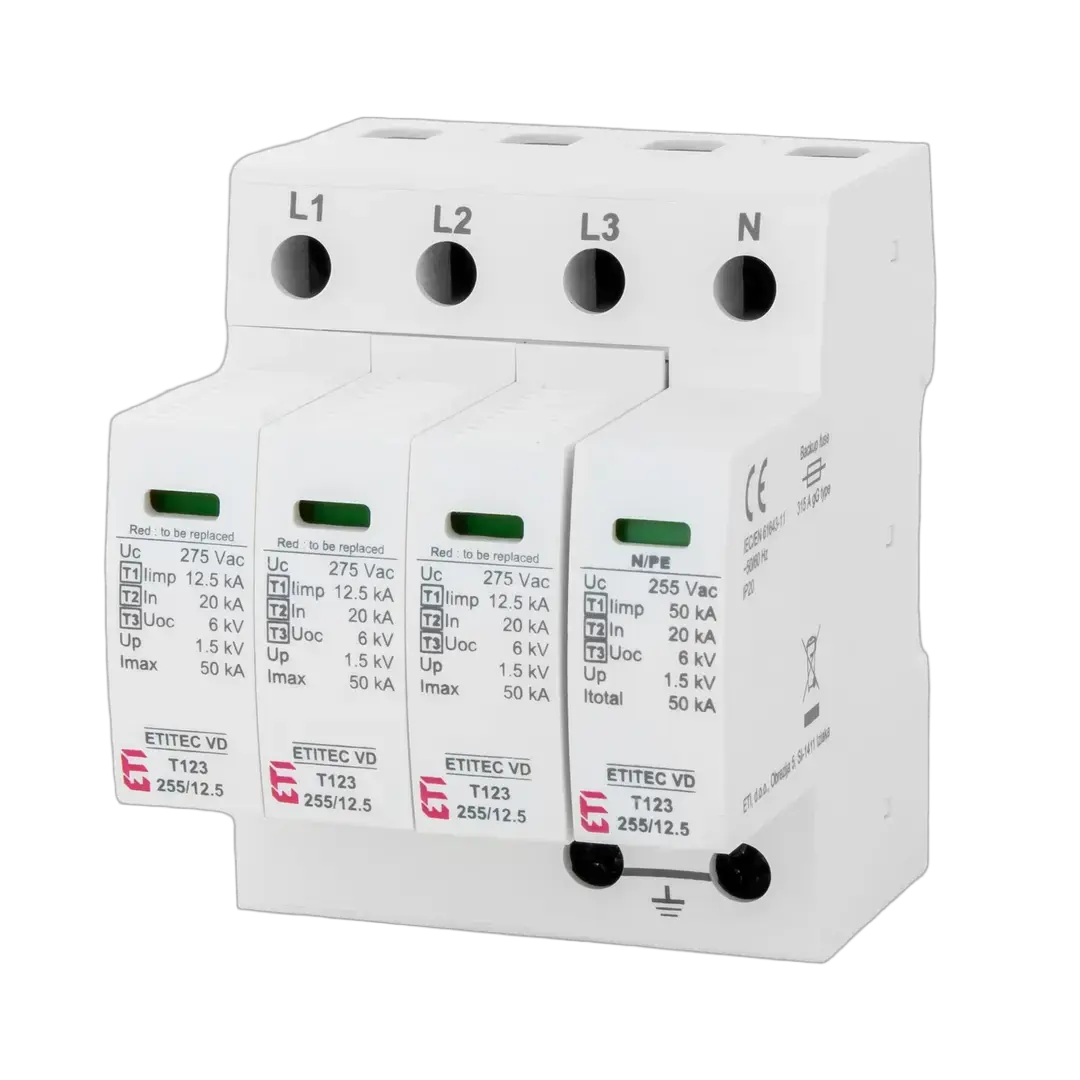

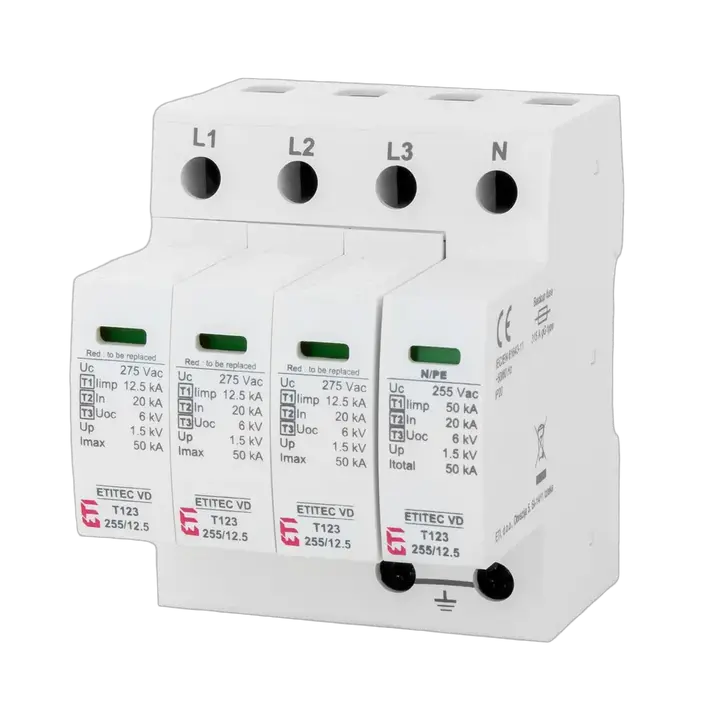

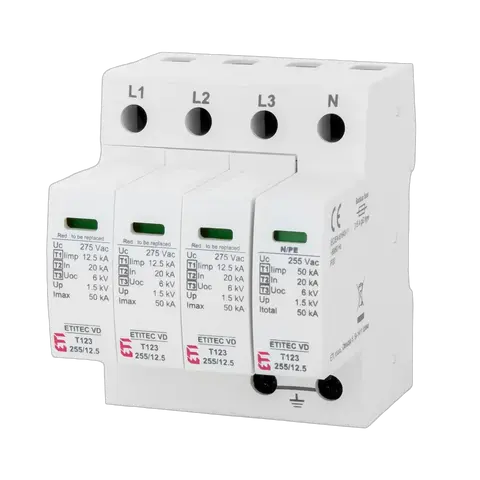

Slika ETITEC VD T123 255/12,5 3+1 RC

ETITEC VD T123 255/12,5 3+1 RC Odvodnik prenapona

ETI kod:: 002442996
Funkcija:: SPD
Tip odvodnika prenapona:: T1, T3, T2
AC maks. trajni radni napon Uc:: 275 V
Maksimalna odvodna struja (10/350) Iimp (kA):: 12,5 kA
In (8/20):: 20 kA
Imax(8/20) [kA]:: 50 kA
Tip struje:: AC
Daljinska signalizacija:: Yes
Struja curenja:: Yes
Sistem uzemljenja:: TT/TN-S
Broj modula:: 4
Instalacija:: DIN
Dubina ugradnje (mm):: 87,8 mm
Grupa kataloga 1:: ETITEC VD

Katalog tehničkih podataka

Proizvod

Težina: 0,218 kg
Net width: 36 mm
Net height: 99 mm
Net depth: 67 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400092809
Basic packaging weight: 0,03 kg
Basic Packaging Dimensions Height: 92 mm
Basic Packaging Dimensions Width: 75 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0,69 dm³

Transportno pakovanje

Intermediate packaging quantity: 2 pcs
EAN code for a intermediate packaging: 3838400092816
Intermediate packaging weight: 1,279 kg
Intermediate Packaging Dimensions Height: 90 mm
Intermediate Packaging Dimensions Width: 105 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 16 pcs
EAN code for a transport packaging: 3838400092823
Transport packaging weight: 16,11 kg
Transport Packaging Dimensions Height: 290 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28,014 dm³
Pallet quantity: 640 pcs
Customs tariff: 85354000

Remote signalling: Da
Voltage switching spark gap technology: Da
Degree of protection (IP): IP20
Lightning impulse current (10/350 µs): 12,5 kA
Number of poles: 4
System configuration TT: Da
Signalling at the device: Optical
Max. continuous voltage AC: 255 V

ETIM klasifikacija – verzija 9.0
