002440622

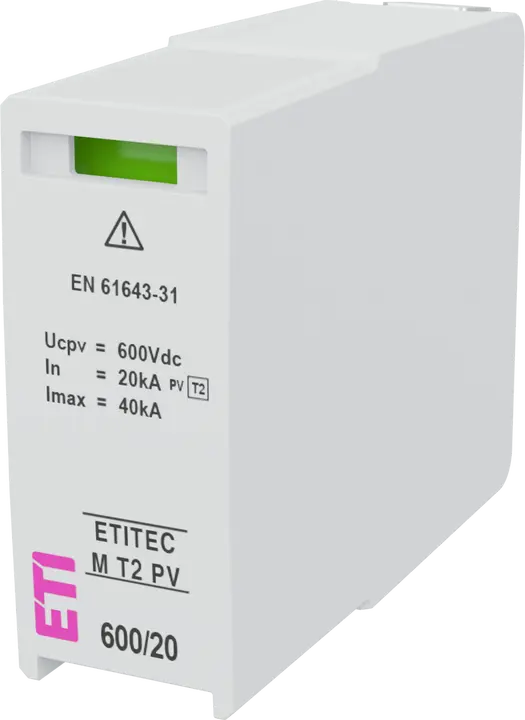

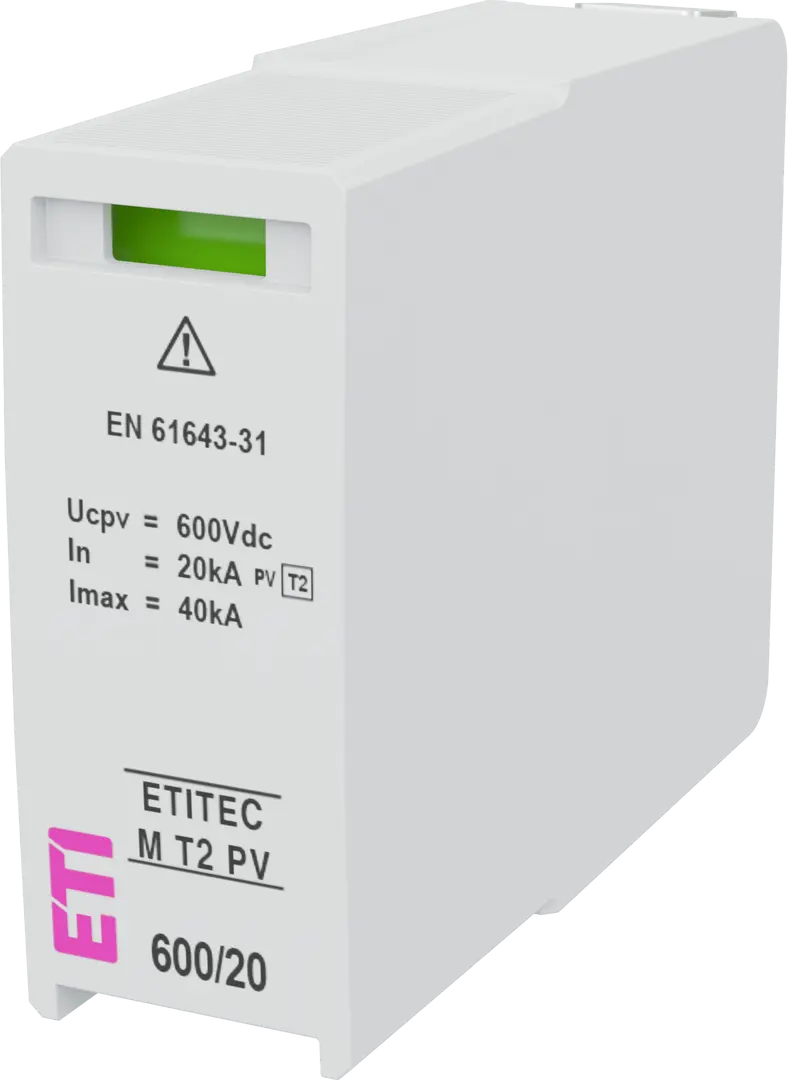

Slika MOD. MT2 PV 600/20

MOD. MT2 PV 600/20 Odvodnik prenapona

ETI kod:: 002440622
Funkcija:: SPD Modul
Sistem uzemljenja:: PV
Grupa kataloga 1:: ETITEC M PV
Instalacija:: PV zaštita
IP zaštita:: IP20
Struja curenja:: Yes
Primenjena tehnologija:: MOV
Tip odvodnika prenapona:: T2
DC maks. trajni radni napon Uc:: 600 V
Za upotrebu sa:: ETITEC M T2 PV
Tip struje:: DC
In (8/20):: 20 kA

Proizvod

Težina: 0,061 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895877967
Basic packaging weight: 0,08 kg
Basic Packaging Dimensions Height: 82 mm
Basic Packaging Dimensions Width: 24 mm
Basic Packaging Dimensions Depth: 50 mm
Basic packaging volume: 0,098 dm³

Transportno pakovanje

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895877974
Transport packaging weight: 2,001 kg
Transport Packaging Dimensions Height: 109 mm
Transport Packaging Dimensions Width: 352 mm
Transport Packaging Dimensions Depth: 115 mm
Transport packaging volume: 4,412 dm³
Pallet quantity: 5.424 pcs
Customs tariff: 85363090

Max. discharge surge current (8/20): 40 kA
Max. continuous voltage DC: 600 V
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Short-circuit breaking capacity (Isccr): 11 kA
Signalling at the device: Optical
Category type 2: Da
Nominal discharge surge current (8/20): 20 kA
System configuration DC: Da

ETIM klasifikacija – verzija 9.0
