Ovaj proizvod više nije dostupan. Zamena:

ETITEC M T2 PV 250/20 Y RC (002440733)

002440431 Zastareo

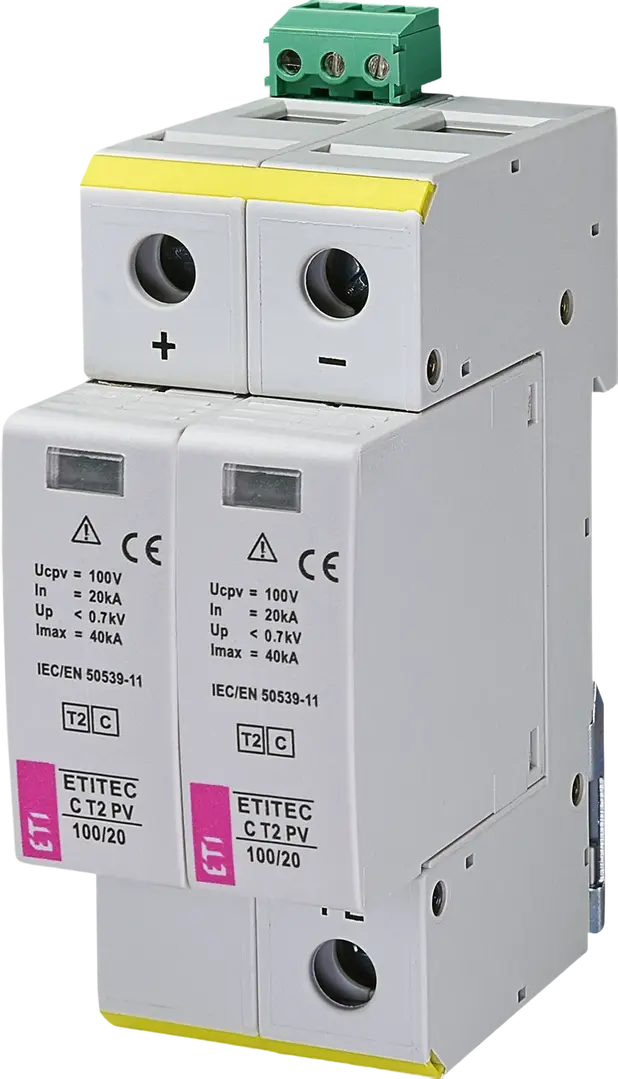

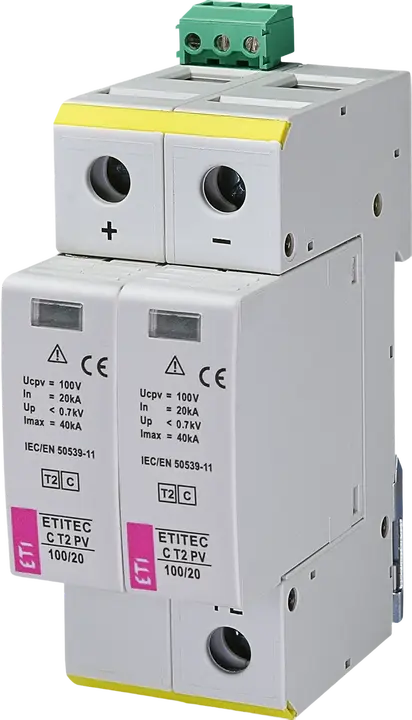

Slika * ETITEC C T2 PV 100/20 RC

* ETITEC C T2 PV 100/20 RC Odvodnik prenapona

ETI kod:: 002440431
Funkcija:: SPD
Tip struje:: DC
Tip odvodnika prenapona:: T2
DC maks. trajni radni napon Uc:: 100 V
In (8/20):: 20 kA
Up - Zaštitni naponski nivo (kV):: 0,7 kV
Daljinska signalizacija:: Yes
Struja curenja:: Yes
Broj modula:: 2
Instalacija:: PV zaštita
Dubina ugradnje (mm):: 68 mm
Primenjena tehnologija:: MOV
IP zaštita:: IP20
Grupa kataloga 1:: ETITEC C PV

Pribor

Proizvod

Težina: 0,279 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895784517
Basic packaging weight: 0,307 kg
Basic Packaging Dimensions Height: 76,5 mm
Basic Packaging Dimensions Width: 41,5 mm
Basic Packaging Dimensions Depth: 109 mm
Basic packaging volume: 0,346 dm³

Transportno pakovanje

Transport packaging quantity: 7 pcs
EAN code for a transport packaging: 3838895784524
Transport packaging weight: 2,363 kg
Transport Packaging Dimensions Height: 298 mm
Transport Packaging Dimensions Width: 112 mm
Transport Packaging Dimensions Depth: 79 mm
Transport packaging volume: 2,637 dm³
Pallet quantity: 1.771 pcs
Customs tariff: 85363090

Max. conductor cross section flexible (fine-strand): 25 mm²
Max. discharge surge current (8/20): 40 kA
Number of conductors (without earthing): 2
Max. conductor cross section solid (solid, stranded): 35 mm²
Max. continuous voltage DC: 100 V
Degree of protection (IP): IP20
Mounting method: DIN rail (top hat rail) 35 mm
Construction size: 2 modular spacing
Short-circuit breaking capacity (Isccr): 0,1 kA
Voltage protection level: 0,7 kV
Max. PV-voltage: 83 V
Signalling at the device: Optical
Category type 2: Da
With remote signalling contact: Da
Nominal discharge surge current (8/20): 20 kA
System configuration DC: Da

ETIM klasifikacija – verzija 9.0

002440431 Odvodnik prenapona * ETITEC C T2 PV 100/20 RC Green protect ETITEC ETITEC C T2 PV ETITEC C T2 PV ETITEC C T2 PV ETITEC C T2 PV Međunarodni Odvodnici prenapona SPD Odvodnici prenapona za PV Surge protection devices Tip odvodnika prenapona: T2 Broj modula: 2 Up - Zaštitni naponski nivo (kV): 0.7 kV Instalacija: PV zaštita Funkcija: SPD IP zaštita: IP20 Daljinska signalizacija: True DC maks. trajni radni napon Uc: 100 V Dubina ugradnje (mm): 68 mm Primenjena tehnologija: MOV Struja curenja: True In (8/20): 20 kA Grupa kataloga 1: ETITEC C PV Odvodnik prenapona TOWAR Tip odvodnika prenapona: T2 Funkcija: SPD Tip odvodnika prenapona: T2 DC maks. trajni radni napon Uc: 100 V In (8/20): 20 kA In (8/20): 20 kA Up - Zaštitni naponski nivo (kV): 0.7 kV Daljinska signalizacija: True Struja curenja: True Broj modula: 2 Instalacija: PV zaštita Dubina ugradnje (mm): 68 mm Primenjena tehnologija: MOV IP zaštita: IP20 Grupa kataloga 1: ETITEC C PV

Pribor 1 Sav pribor

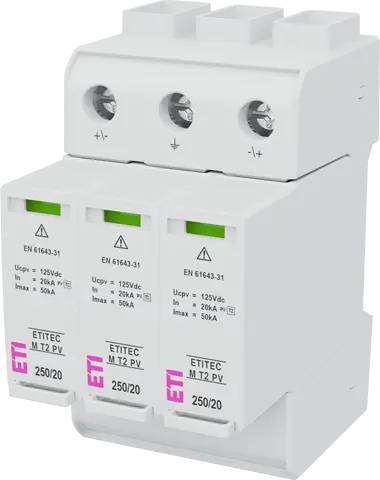

ETITEC M T2 PV 250/20 Y RC
