Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921177

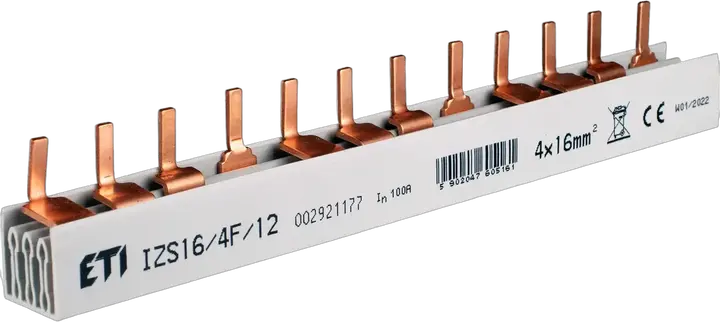

Slika IZS16/4F/12

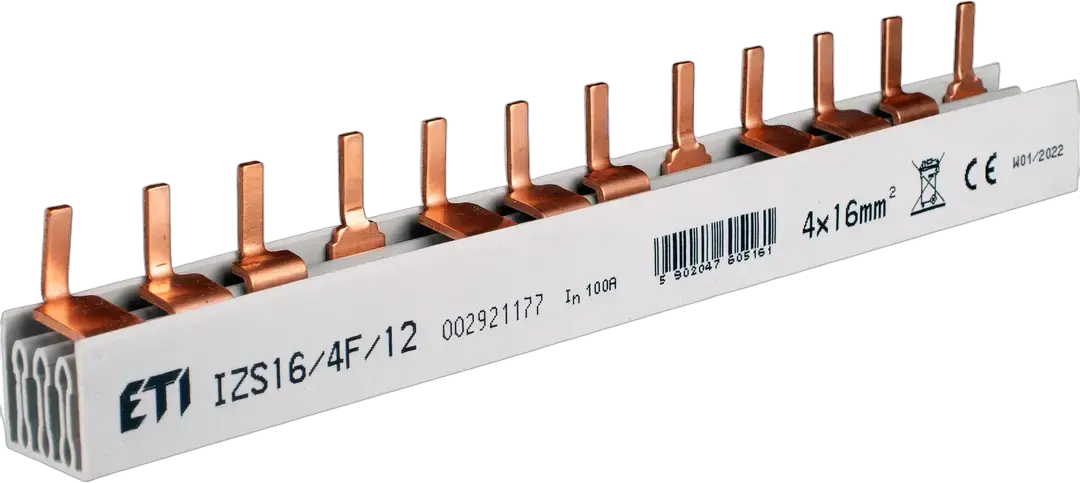

IZS16/4F/12 Izolovano sabirnica

ETI kod:: 002921177
Za upotrebu sa:: EFI-4, KZS-4M
Opis tipa:: PIN
Funkcija:: Završni poklopac
Tip sabirnice:: PIN
Nazivna struja:: 100 A
Nazivni poprečni presek:: 16 mm²
Dužina u modulima:: 1x12
Broj faza:: 4
Nazivni AC napon:: 240/415 V
Vrsta pribora:: Odeljne šine

Katalog tehničkih podataka

Proizvod

Težina: 0,17 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 5902047605208
Basic packaging weight: 1,8 kg
Basic packaging volume: 1,78 dm³

Transportno pakovanje

Transport packaging quantity: 80 pcs
EAN code for a transport packaging: 5902047605239
Transport packaging weight: 14,4 kg
Transport packaging volume: 31 dm³
Pallet quantity: 2.560 pcs
Customs tariff: 85389099

Cross section: 16 mm²
Suitable for devices with N-conductor: Da
Number of phases: 3
Rated permanent current Iu: 100 A
Suitable for number of devices: 3
Module width: 17,8 mm
Number of poles: 4
Max. rated operation voltage Ue: 415 V
Insulated: Da
Type of electric connection: Pin

ETIM klasifikacija – verzija 9.0
