DIN rail distribution blocks EDB provide a safe and organized solution for connecting and distributing electrical power in low-voltage applications. These blocks are designed for mounting on standard DIN rails, ensuring compatibility with various electrical enclosures and panels. They feature a robust construction and offer numerous advantages for efficient and reliable power distribution.

001102441

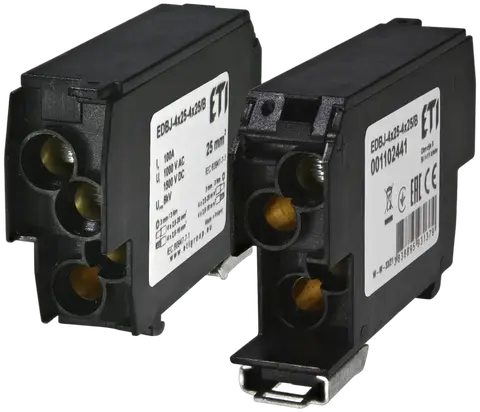

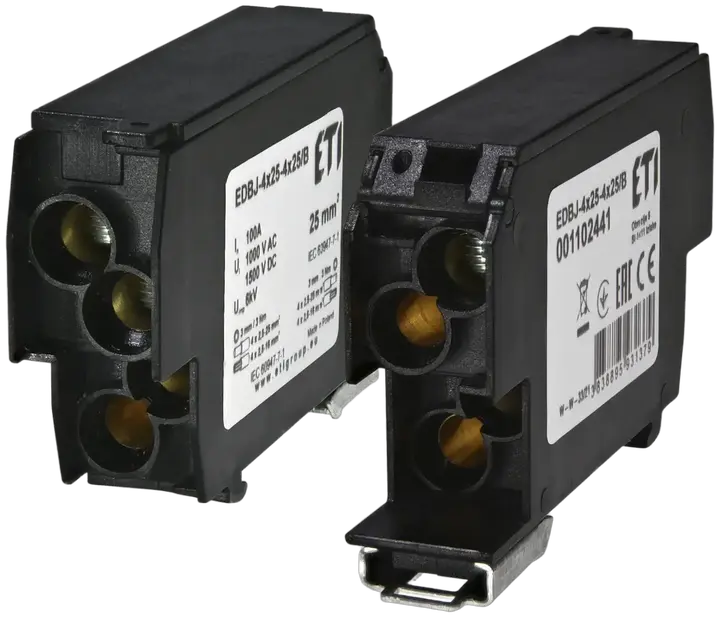

Slika EDBJ-4x25-4x25/B

EDBJ-4x25-4x25/B Distributivni blok

ETI kod:: 001102441
Tip montaže:: Montaža na DIN šinu TH 35
Nazivna struja:: 100 A
Nazivni AC napon:: 415 V
Nazivni DC napon:: 415 V
Nazivni izolacioni napon (V):: 1.000 V
Nazivna prekidna moć:: 10 kA
Visina (mm):: 80,3 mm
Širina (mm):: 17,8 mm
Dubina (mm):: 50 mm
Nazivni poprečni presek:: 2.5-25 mm²
Materijal osnove:: PC/ABS
Stezni materijal:: MO-58
Radna temperatura (°C):: -30-80 °C

Proizvod

EAN code for a single product: 3838895931379
Težina: 0,125 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838400166272
Basic packaging weight: 1,31 kg
Basic Packaging Dimensions Height: 89 mm
Basic Packaging Dimensions Width: 182 mm
Basic Packaging Dimensions Depth: 52 mm
Basic packaging volume: 0,842 dm³

Transportno pakovanje

Transport packaging quantity: 240 pcs
EAN code for a transport packaging: 3838895931270
Transport packaging weight: 30 kg
Transport Packaging Dimensions Height: 280 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 340 mm
Transport packaging volume: 19,992 dm³
Pallet quantity: 4.800 pcs
Customs tariff: 85369010

Width: 17,8 mm
Material insulation body: Thermoplastic
Rated current In: 100 A
Mounting method: Other
Number of poles: 1
Number of clamp positions per pole: 8
Depth: 50 mm
Rated voltage: 415 V
Colour: Black
Height: 80,3 mm
Inflammability class of insulation material according to with UL94: V0
Operating temperature(Min): -30 °C
Operating temperature(Max): 80 °C

ETIM klasifikacija – verzija 9.0
