DIN rail distribution blocks EDB provide a safe and organized solution for connecting and distributing electrical power in low-voltage applications. These blocks are designed for mounting on standard DIN rails, ensuring compatibility with various electrical enclosures and panels. They feature a robust construction and offer numerous advantages for efficient and reliable power distribution.

001102442

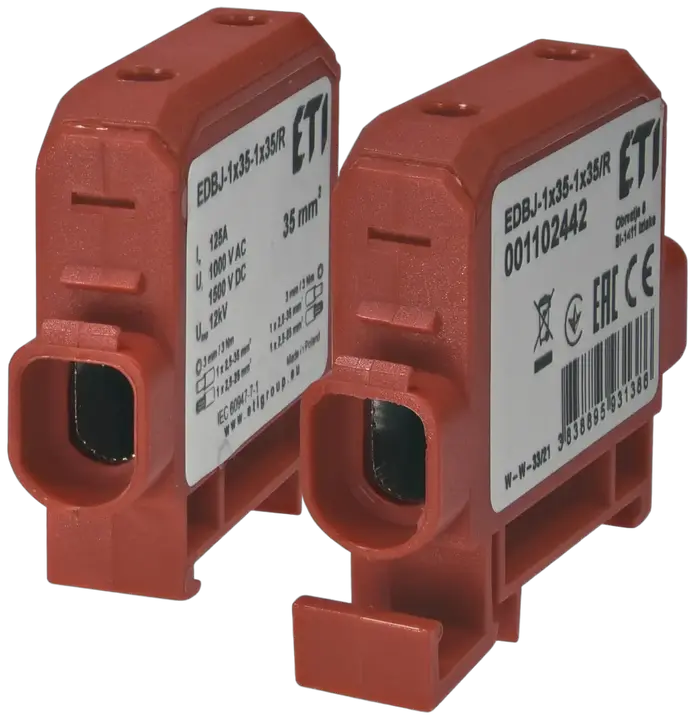

Slika EDBJ-1x35-1x35/R

EDBJ-1x35-1x35/R Stezaljke za povezivanje provo

ETI kod:: 001102442
Tip montaže:: Montaža na DIN šinu TH 35
Nazivna struja:: 125 A
Nazivni AC napon:: 415 V
Nazivni DC napon:: 415 V
Nazivni izolacioni napon (V):: 1.000 V
Nazivna prekidna moć:: 4.2 kA
Visina (mm):: 58,7 mm
Širina (mm):: 13,2 mm
Dubina (mm):: 48,5 mm
Nazivni poprečni presek:: 2.5-35 mm²
Materijal osnove:: PA6.6
Stezni materijal:: Al6060+Sn
Radna temperatura (°C):: -30-80 °C

Proizvod

EAN code for a single product: 3838895931386
Težina: 0,027 kg
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838400166289
Basic packaging weight: 0,27 kg
Basic Packaging Dimensions Height: 66 mm
Basic Packaging Dimensions Width: 139 mm
Basic Packaging Dimensions Depth: 52 mm
Basic packaging volume: 0,477 dm³

Transportno pakovanje

Transport packaging quantity: 300 pcs
EAN code for a transport packaging: 3838895931294
Transport packaging weight: 8,1 kg
Transport Packaging Dimensions Height: 280 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 340 mm
Transport packaging volume: 19,992 dm³
Pallet quantity: 9.600 pcs
Customs tariff: 85369010

Width: 13,2 mm
Rated current In: 125 A
Mounting method: Other
Depth: 48,5 mm
Rated voltage: 415 V
Height: 58,7 mm
Operating temperature(Min): -30 °C
Operating temperature(Max): 80 °C

ETIM klasifikacija – verzija 9.0
