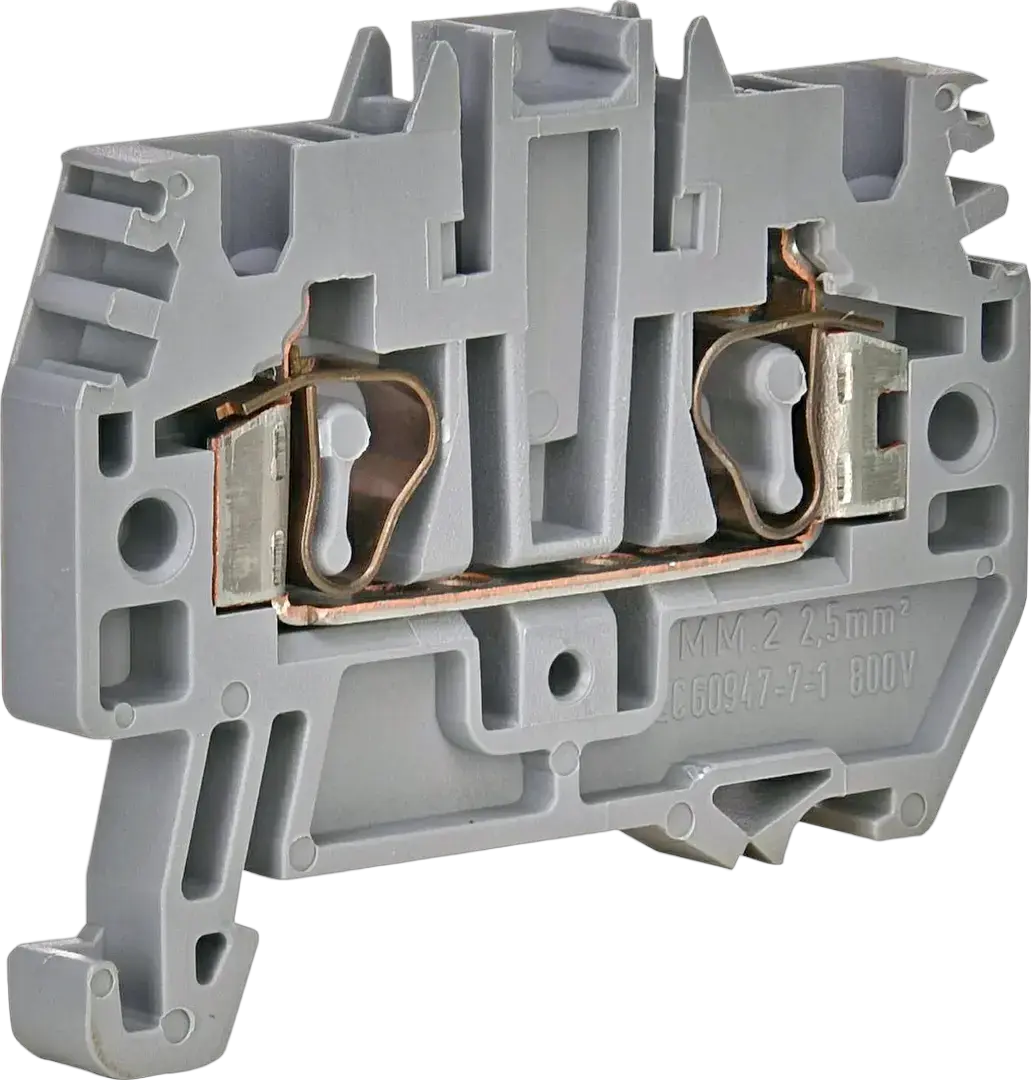

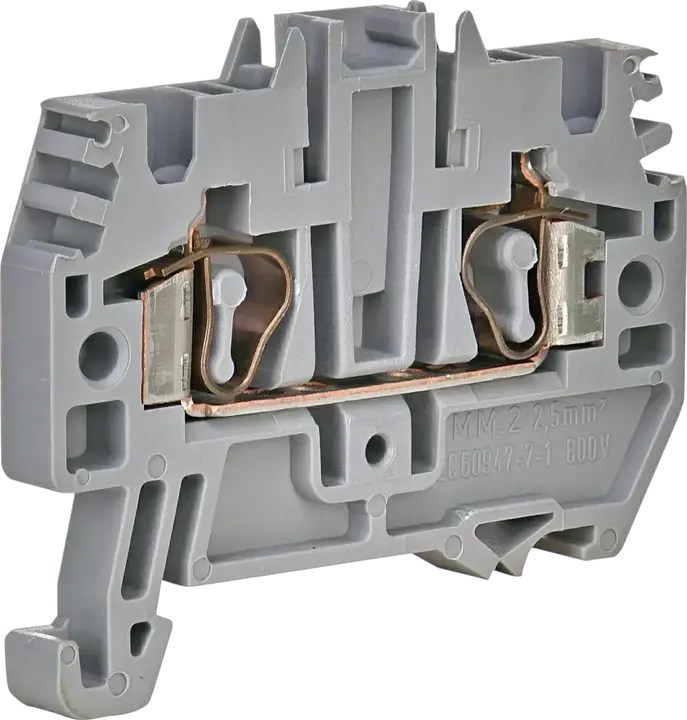

ESP-HMM.2 Stezaljka

ETI kod:: 003903131
Nazivni AC napon:: 800 V
Nazivni DC napon:: 800 V
Grupa kataloga 1:: ES opružne stezaljke
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: ES opružne stezaljke
Nivo:: Jednostruki
Boja:: Siva
Nazivni poprečni presek:: 2.5 mm²
Nazivni impulsni napon Uimp (kV):: 8 kV
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 24 mm²
Priključci za provodnik (mm²):: 0.2-4 mm²
Unakrsna veza:: Yes
Potreban je krejnji deo:: Yes

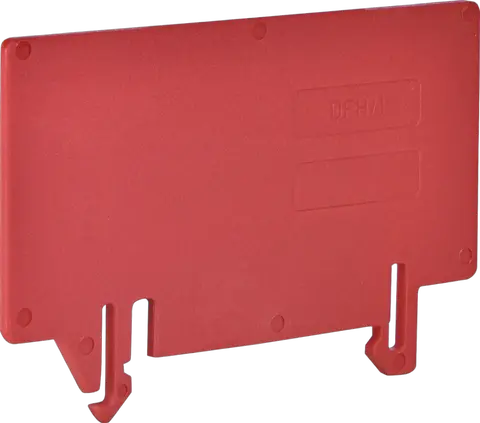

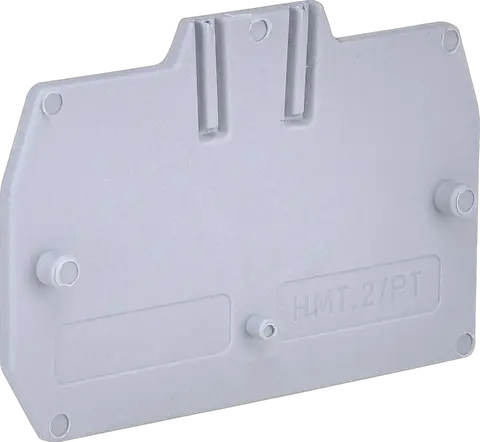

Pribor

Proizvod

EAN code for a single product: 3838895861928
Težina: 7 g
Net width: 5,2 mm
Net height: 50 mm
Net depth: 40,5 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 80 pcs
EAN code for a transport packaging: 3838895789253
Transport packaging weight: 0,633 kg
Transport Packaging Dimensions Height: 70 mm
Transport Packaging Dimensions Width: 150 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,575 dm³
Pallet quantity: 44.800 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 5,2 mm
Material insulation body: Thermoplastic
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Spring clamp connection
Rated voltage: 800 V
Colour: Grey
Height: 41 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2,5 mm²

ETIM klasifikacija – verzija 9.0
