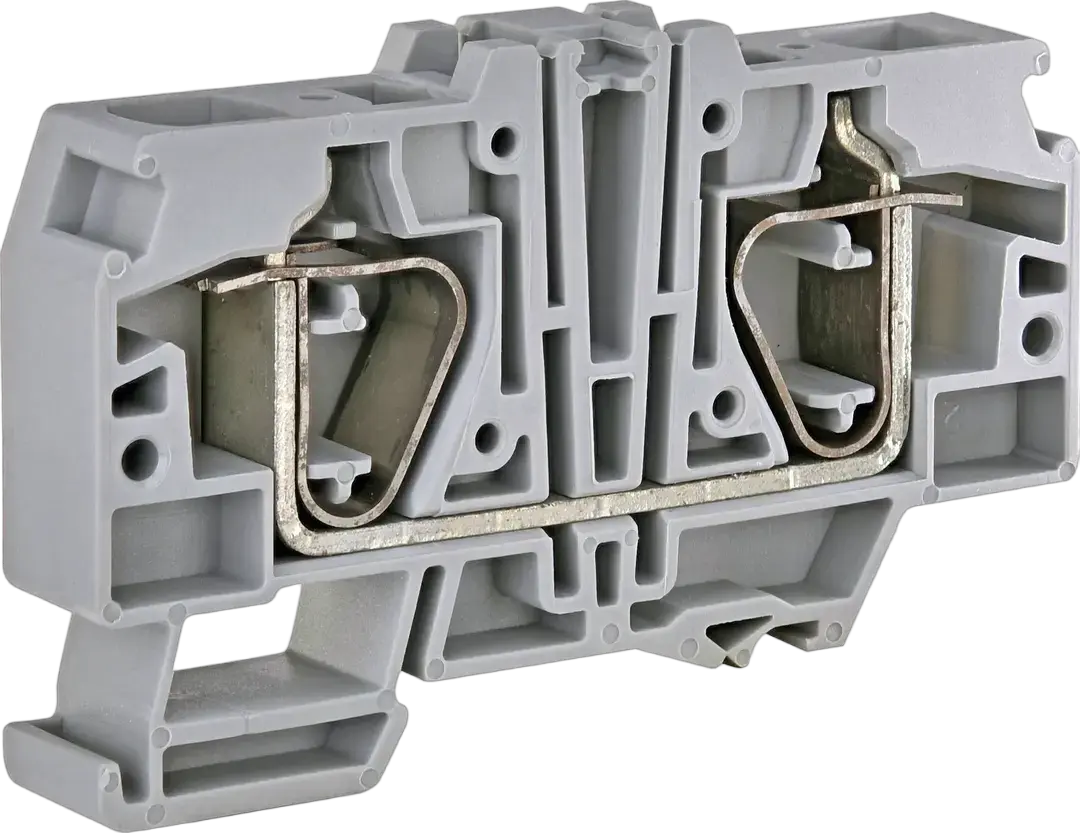

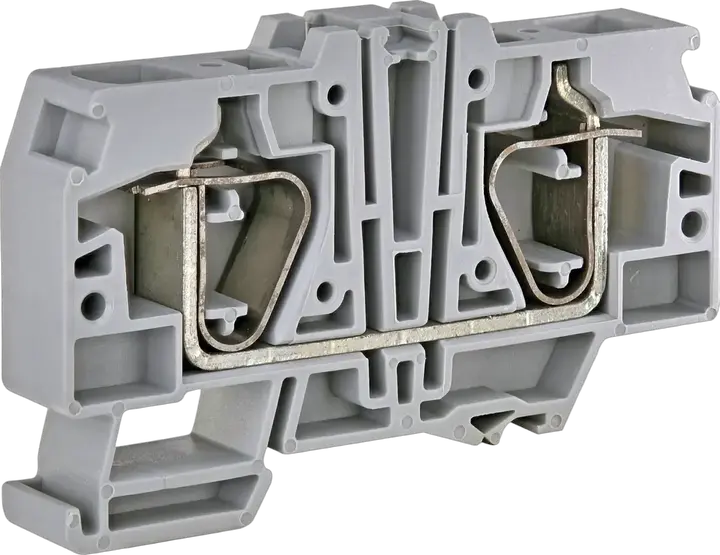

ESP-HMR.16 Klema

ETI kod:: 003903178
Nazivni AC napon:: 800 V
Nazivni DC napon:: 800 V
Grupa kataloga 1:: ES opružne stezaljke
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: ES opružne stezaljke
Nivo:: Dvostruki
Boja:: Siva
Nazivni poprečni presek:: 16 mm²
Nazivni impulsni napon Uimp (kV):: 12 kV
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 76 mm²
Unakrsna veza:: Yes
Potreban je krejnji deo:: Yes

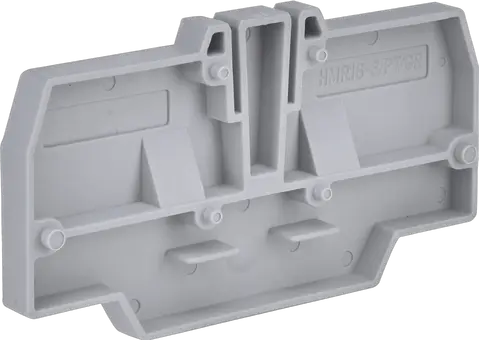

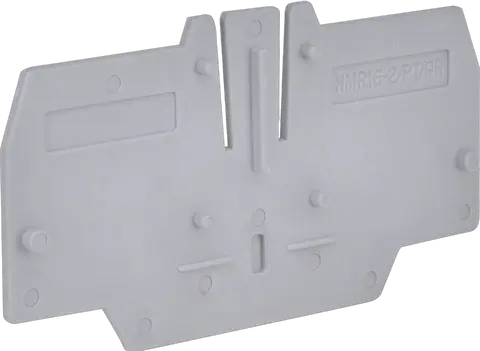

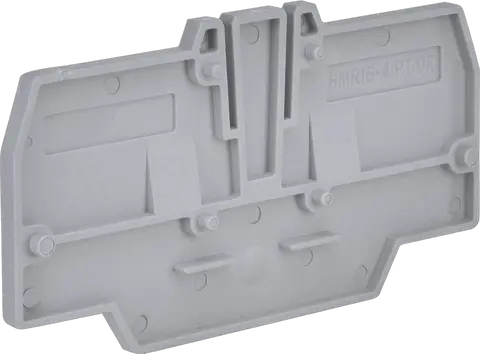

Pribor

Proizvod

EAN code for a single product: 3838895862451
Težina: 43 g
Net width: 12,8 mm
Net height: 80 mm
Net depth: 50 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 15 pcs
EAN code for a transport packaging: 3838895789727
Transport packaging weight: 0,66 kg
Transport Packaging Dimensions Height: 85 mm
Transport Packaging Dimensions Width: 160 mm
Transport Packaging Dimensions Depth: 100 mm
Transport packaging volume: 1,36 dm³
Pallet quantity: 9.900 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 12,8 mm
Material insulation body: Thermoplastic
Rated current In: 76 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Spring clamp connection
Rated voltage: 800 V
Colour: Grey
Height: 50 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section multi-wired(Min): 1,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 16 mm²

ETIM klasifikacija – verzija 9.0
