ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901518

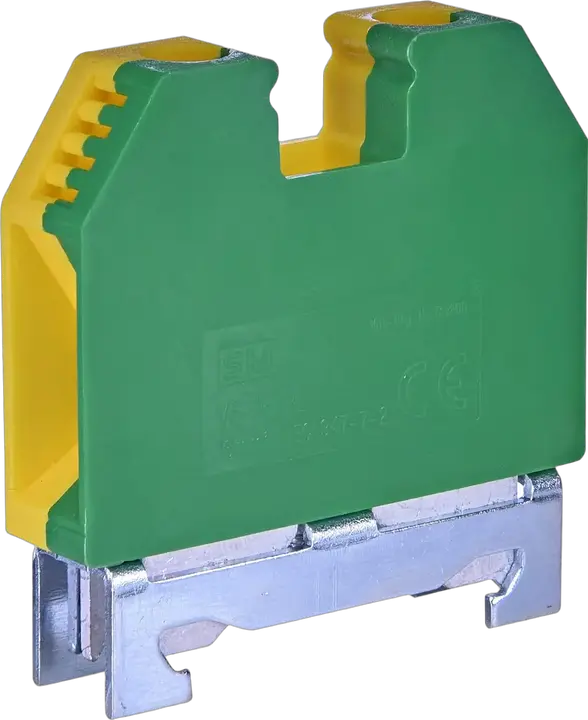

Slika VS 16 PE

VS 16 PE Stezaljka

ETI kod:: 003901518
Grupa kataloga 1:: SM Line-up terminali
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: SM Line-up terminali
Nivo:: Jednostruki
Boja:: Zelena, Žuta
Nazivni poprečni presek:: 16 mm²
Maksimalna struja sa nominalnim poprečnim presekom (mm²):: 70 mm²
Unakrsna veza:: No
Potreban je krejnji deo:: No
Funkcija:: Blok uzemljenja VS PE

Proizvod

EAN code for a single product: 3838400082732
Težina: 0,05 kg
Net width: 12 mm
Net height: 55 mm
Net depth: 53 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3831012325020
Transport packaging weight: 2,478 kg
Transport packaging volume: 2,1 dm³
Pallet quantity: 16.150 pcs
Customs tariff: 85369010

Width: 12 mm
Material insulation body: Thermoplastic
Rated current In: 70 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Clip connection
Colour: Green/yellow
Height: 55 mm
Connectable conductor cross section solid-core(Min): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 6 mm²
Connectable conductor cross section solid-core(Max): 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 16 mm²

ETIM klasifikacija – verzija 9.0
