002445323 Zastareo

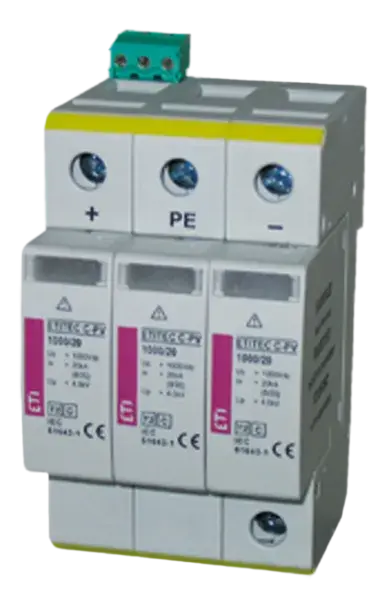

Slika *MOD.ETITEC S C-PV 1000/20

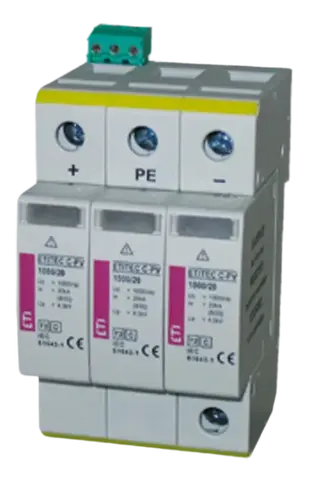

*MOD.ETITEC S C-PV 1000/20 Odvodnik prenapona

ETI kod:: 002445323
Tip odvodnika prenapona:: T2
Grupa kataloga 1:: ETITEC S C PV
Instalacija:: PV zaštita
Primenjena tehnologija:: MOV
Struja curenja:: Yes
IP zaštita:: IP20
DC maks. trajni radni napon Uc:: 1.000 V
Funkcija:: SPD Modul
Za upotrebu sa:: ETITEC S C PV
Tip struje:: DC
In (8/20):: 20 kA

Proizvod

Težina: 78 g
Stock unit of measure: pcs
EAN code for a single product: 3838400060341

Osnovno pakovanje

EAN code for a basic packaging: 3838895635598
Basic packaging weight: 0,078 kg
Basic packaging volume: 0,64 dm³
Basic packaging quantity: 12 pcs

Transportno pakovanje

Transport packaging weight: 0,156 kg
Transport packaging volume: 1,28 dm³
Transport packaging quantity: 24 pcs
Customs tariff: 85363090
EAN code for a transport packaging: 3838895635604
Pallet quantity: 33.744 pcs

Max. discharge surge current (8/20): 40 kA
Max. continuous voltage DC: 1.000 V
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Short-circuit breaking capacity (Isccr): 0,2 kA
Signalling at the device: Optical
Category type 2: Da
Nominal discharge surge current (8/20): 20 kA
System configuration DC: Da

ETIM klasifikacija – verzija 9.0
