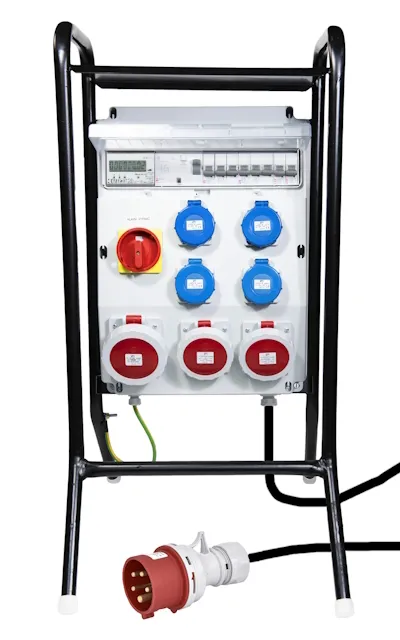

Opremljen distributer EDS16S RCD 4/3 16/32/VYP/P/E C 004483457
Specifikacije
- Šifra proizvoda:
- 004483457
- Opis:
- EDS16S RCD 4/3 16/32/VYP/P/E C
- Ime razreda:
- Opremljen distributer
- Nazivna struja:
- 32
- Nazivni napon:
- 400
- Tip (utičnica/uvodnica):
- 2x16A(5p), 1x32A(5p), 4xGROUND PIN
- Broj modula:
- 16
- IP zaštita:
- IP65
- MCBs_applied_EDS:
- 2xC16/1, 1xC16/3, 1xC32/3
- Dodatni uređaji:
- with RCD, supply cable with plug, energy counter,
Dokumenti
Logistički podaci
Proizvod
- Carinska tarifa
- 85371098
Transportno pakovanje
- Količina
- 1
- EAN
- 3838400125026
- Težina
- 13 kg
- Broj paleta
- 5
ETIM Clasifikacija
- Klasifikacija
- EC000484
- Ime razreda
- Energy distributor for construction site
- Model
- Mobile end-distributor
- Rated current
- 63A
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
- 2
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
- 1
- Number of meter panels
- 1
- Number of miniature circuit breakers (MCB)
- 4
- Main switch
- Power-cut-out switch
- Number of poles main switch
- 3
- Main switch rated current
- 63A
- Number of earth leakage switches 30 mA
- 1
- Degree of protection (IP)
- IP65
- Rated voltage
- 400 V

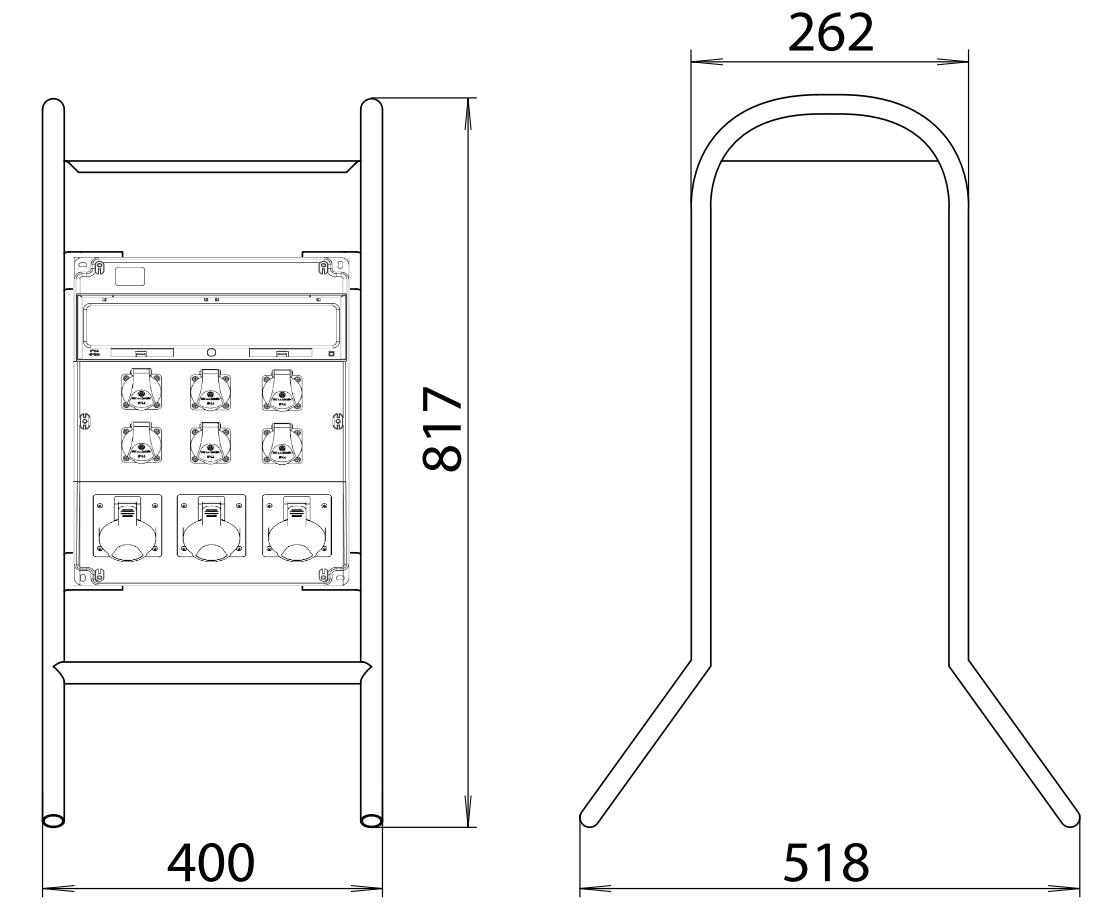

- Width
- 400mm
- Height
- 820mm
- Depth
- 520mm
- Housing material
- Plastic
EDS16S RCD 4/3 16/32/VYP/P/E C
