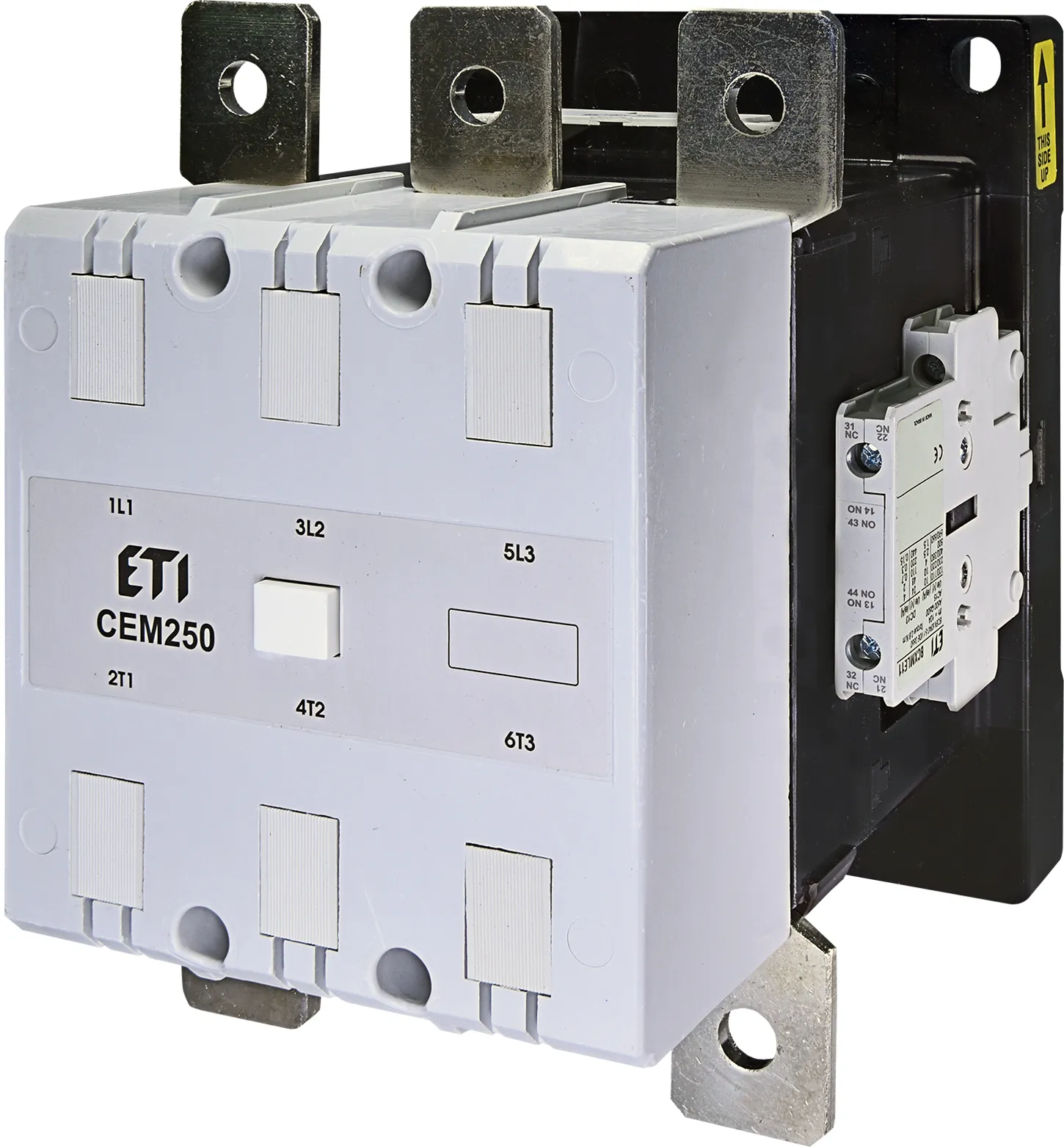

Motorni kontaktor CEM250.22-110V-50/60Hz 004656142
Specifikacije
- Šifra proizvoda:
- 004656142
- Opis:
- CEM250.22-110V-50/60Hz
- Ime razreda:
- Motorni kontaktor
- Funkcija:
- Motorni kontaktori
- I (AC1):
- 350A
- I (AC3 400 V):
- 250A
- Nazivni radni napon (V AC):
- 1000V
- Nazivni napon upravljačkog kruga Uc (V AC): 230:
- 110V
- Broj polova:
- 3
- broj auc NO kontakta:
- 2
- Broj pomoćnih NC kontakata:
- 2
Dokumenti
Logistički podaci
Proizvod
- Eticode težina
- 6 kg
- Carinska tarifa
- 85364900
- logis_net_width
- 145 mm
- logis_net_height
- 205 mm
- logis_net_depth
- 182 mm
Transportno pakovanje
- Količina
- 1
- EAN
- 7890355109250
- Težina
- 6.725 kg
- Broj paleta
- 133
ETIM Clasifikacija
- Klasifikacija
- EC000066
- Ime razreda
- Power contactor, AC switching
- Rated control supply voltage AC 50 Hz
- 110…110V
- Rated control supply voltage AC 60 Hz
- 110…110V
- Rated control supply voltage DC
- 110…110V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-1, 400 V
- 350A
- Rated operation current Ie at AC-3, 400 V
- 250A
- Rated operation power at AC-3, 400 V
- 132kW
- Modular version
- Ne
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Type of electrical connection of main circuit
- Rail connection
- Number of normally open contacts as main contact
- 3
