Motorni kontaktor CEM560E.22-255V-AC/DC 004656307
Specifikacije
- Šifra proizvoda:
- 004656307
- Opis:
- CEM560E.22-255V-AC/DC
- Ime razreda:
- Motorni kontaktor
- Funkcija:
- Motorni kontaktori
- I (AC1):
- 700
- I (AC3 400 V):
- 560
- P (AC3 kW):
- 300
- Broj polova:
- 3
- broj auc NO kontakta:
- 2
- Broj pomoćnih NC kontakata:
- 2
Dokumenti
Logistički podaci
Proizvod
- Carinska tarifa
- 85364900
- logis_net_width
- 182 mm
- logis_net_height
- 291 mm
- logis_net_depth
- 227 mm
Transportno pakovanje
- Količina
- 1
- EAN
- 7909522136675
- Težina
- 12 kg
- Broj paleta
- 45
ETIM Clasifikacija
- Klasifikacija
- EC000066
- Ime razreda
- Power contactor, AC switching
- Rated control supply voltage AC 50 Hz
- 110…255V
- Rated control supply voltage AC 60 Hz
- 110…255V
- Rated control supply voltage DC
- 110…255V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-1, 400 V
- 700A
- Rated operation current Ie at AC-3, 400 V
- 560A
- Rated operation power at AC-3, 400 V
- 300kW
- Rated operation current Ie at AC-4, 400 V
- 345A
- Rated operation power at AC-4, 400 V
- 185kW
- Modular version
- Ne
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Type of electrical connection of main circuit
- Screw connection
- Number of normally open contacts as main contact
- 3

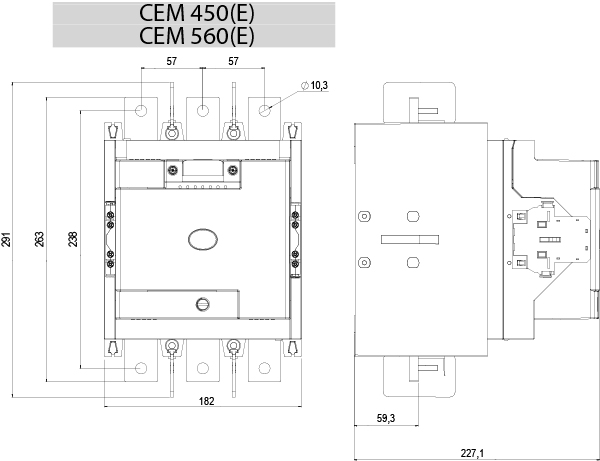

Slike i dijagrami
Softver i upravljački programi
Softver se nudi takav kakav jeste be1z ikakvih garancija. Autor nije u obavezi da pruža podršku, usluge, ažuriranja ili nadogradnje besplatnog softvera ili upravljačkik programa.
